As a leading PCB prototype expert, we are committed to delivering rapid prototyping and quick-turn services that fuel innovation and accelerate your product development.

Our expertise ensures that your designs move swiftly from concept to reality, allowing you to stay ahead in the competitive market.

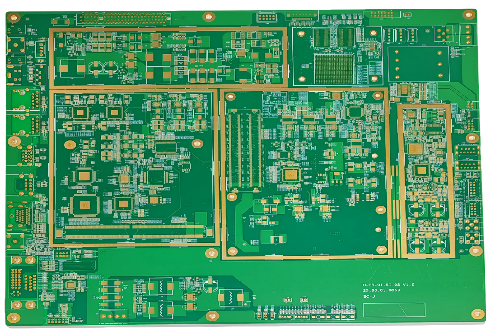

Multilayer Board

Substrate model: TU872SLK
Layers/board thickness: 10L/2.0mm
Line width/space: 0.11/0.10mm
Minimum hole diameter: 0.25mm
Surface finish: Gold Plating
Features: High-speed substrate, high-precision impedance control
Application fields: Medical controller board

High Thermal Conductivity and High Heat Dissipation PCB

Features: Metal base and ceramic materials, featuring thermal conductivity exceeding 30W/mk.
Application fields: Power

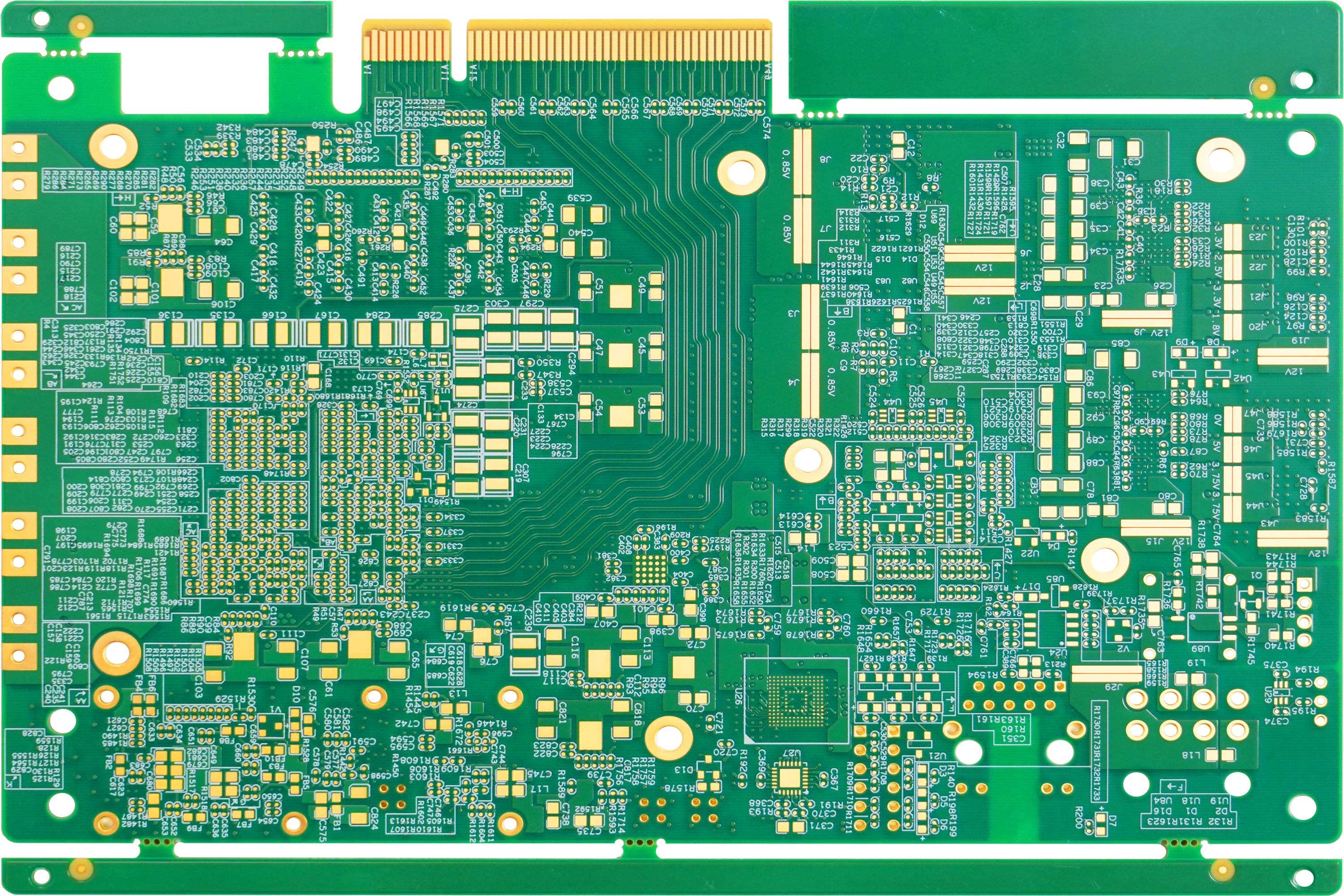

Step Gold Finger PCB

Material: RO4350B+TU872SLK
Layer Count: 18L
Board Thickness: 2.5mm (Gold Finger 1.6mm)
Minimum line width/space: 4.0mil/4.0mil
Partial gold plating thickness: 30 micro-inches
Application fields: Communication

High Step HDI PCB with Staggered Vias

Materials: High-speed halogen-free materials
Structure: HDI PCB with staggered vias
Layer: ≥10 step
Trace width & space：0.075 /0.075mm
Coil resistance: ±5%
Surface finish: Immersion gold
Application fields: Artificial intelligence
