Key Takeaways
- Thermal Management Challenge: Standard FR4 PCBs (0.3 W/mK) create heat bottlenecks, causing LED streetlights and automotive electronics to fail prematurely.
- Significant Performance Gains: Metal core PCBs achieve 10-50x better heat dissipation, reducing component temperatures by 30-50°C and tripling operational lifespan.
- Primary Industries: LED lighting, automotive systems, power electronics, 5G infrastructure, and industrial automation rely on MCPCBs for thermal reliability.
- Smart Material Choices: Aluminum cores offer cost-effective solutions (1-8 W/mK) while copper cores deliver maximum performance (200+ W/mK).
- Strategic Considerations: Power requirements, environmental conditions, and lifecycle costs determine optimal MCPCB selection.
- KINGBROTHER Capabilities: Advanced 28+ years of experience, 18 OZ copper capabilities, and comprehensive quality certifications.
Introduction
When high-performance electric vehicle battery systems discharge at 400+ amps during rapid acceleration, their power management circuits must handle extreme current loads that would destroy standard PCBs within seconds. Metal core PCBs (MCPCBs) handle these challenging operating conditions reliably, enabling the operation that modern automotive systems require.
Modern electronics face a critical engineering challenge: thermal management. From LED streetlights failing after two years instead of ten, to automotive electronics shutting down in summer heat, thermal management has become the critical factor determining product success or failure.
This comprehensive guide reveals why the metal core PCB market is experiencing significant market expansion and how KINGBROTHER’s advanced manufacturing capabilities solve complex thermal challenges across industries.
Why Do High-Power Applications Fail with Standard PCBs?
Standard FR4 printed circuit boards face fundamental limitations when handling high-power applications, creating sequential failure mechanisms affecting system performance.
What Causes PCB Failures in High-Power Applications?
1. Poor Heat Dissipation
Standard PCBs cannot dissipate heat fast enough in power-dense environments. This leads to thermal stress, performance degradation, and eventual failure.
2. Low Thermal Conductivity Materials
FR4 material lacks the thermal conductivity required to support high-current or high-frequency applications, resulting in hotspots and early component failure.
3. Insufficient Thermal Management Design
Inadequate copper thickness, poor layer stackups, and a lack of thermal vias can all limit the PCB’s ability to handle power efficiently.
Real World Failure Scenarios
Here are some of the reasons why heat dissipation matters for high-power applications:
LED Lighting Systems
High-output LEDs generate significant heat. Without proper dissipation:
- Brightness can drop 5–70% at 75°C, depending on LED type.
- Lifespan shortens by up to 50% for every 10°C temperature increase.
- Color temperature shifts affect lighting quality and consistency.
Automotive Electronics
Vehicles run over 100 ECUs, often near hot zones like engine bays (up to 125°C). Standard PCBs degrade at 85°C, leading to:
- Failures in power steering, battery management systems, or engine control modules.
- High warranty claims and potential road safety issues.
- Costly recalls affecting thousands of vehicles.
Power Electronics
DC-DC converters, inverters, and motor drivers experience:
- I²R losses (heat generated when current flows through a resistor) and switching losses (energy dissipated during the transitions of a semiconductor device between its on and off states) that generate concentrated heat.
- Thermal protection circuits trigger shutdowns in industrial automation.
- Efficiency loss in renewable systems due to thermal derating (reducing the operating power of an electronic component or system when the ambient temperature is high).
- Forced implementation of external cooling systems increases complexity and cost.
The Cost of Thermal Failure
For every 10°C increase in operating temperature, semiconductor failure rates double. This exponential relationship makes thermal management the foundational requirement for reliable high-power electronics. Component failure cascades often trigger system-wide failures, extending costs beyond initial replacement to include downtime, field service calls, and reputation damage.
What is a Metal Core PCB and How Does it Solve Thermal Challenges?
A metal core PCB is a specialized printed circuit board featuring a metal base layer (typically aluminum or copper) that provides enhanced thermal conductivity compared to traditional FR4 substrates. This advanced construction significantly improves heat flow through the circuit board, enabling applications previously impossible with standard PCBs.
Advanced Construction Breakdown
The MCPCB construction consists of three essential layers working in harmony:
- Circuit Layer: Contains copper traces and component mounting areas, optimized for electrical and thermal performance.
- Thermal Interface Layer: Provides electrical isolation while maintaining thermal conductivity between the circuit and the metal base.
- Metal Base Layer: Serves as the primary thermal pathway, conducting heat away from components.
Thermal Conductivity Comparison
The thermal conductivity differences are significant:
- Standard FR4: 0.3 W/mK (Watts per meter Kelvin) (thermal bottleneck)
- Aluminum metal core PCB: 1-8 W/mK (10-25x improvement)
- Copper core PCB: 200+ W/mK (600x improvement)
How MCPCBs Transform Thermal Management
Metal core PCBs create efficient heat conduction pathways by spreading heat across larger areas, reducing thermal resistance, and enabling natural convection or forced air cooling. This approach eliminates thermal hot spots while maintaining electrical isolation through the specialized dielectric layer.
Why Are Metal Core PCBs Superior to Standard FR4 Boards?
Metal core PCBs deliver four key advantages that make them required for high-power applications, each addressing specific limitations of traditional PCB technology:
| Feature |
MCPCBs |
FR4 PCBs |
| Heat Dissipation |
10–50x better thermal conductivity, lowering component temperatures by 30–50°C. |
Limited thermal conductivity, leading to hot spots and thermal stress. |
| Power Handling |
Higher current capacity without thermal derating, improved efficiency. |
Limited power handling due to thermal constraints. |
| Mechanical Strength |
Superior vibration resistance, better thermal cycling stability. |
Lower mechanical strength, prone to warping. |
| System Cost |
Higher initial cost, but eliminates external heat sinks and complex cooling. |
Lower initial cost but requires additional cooling components. |
| Reliability |
Extended component lifespan, consistent performance throughout lifecycle. |
Higher thermal stress leads to shorter lifespans and frequent failures. |
Quantified Performance Benefits
- Current Capacity: 5-10x higher current handling without thermal derating.
- Temperature Reduction: 30-50°C lower operating temperatures.
- Lifespan Extension: 3-5x longer component operational life.
- Efficiency Gains: 15-25% improved system efficiency through reduced thermal resistance.
Which Industries Benefit Most from Metal Core PCB Solutions?
The metal core PCB market serves industries where thermal management determines product success, with each sector presenting unique requirements and performance criteria:
LED Lighting Applications
Critical Requirements:
- Street lighting: 50W+ LED arrays requiring efficient heat dissipation to maintain light output.
- Automotive headlights: High-power LED clusters in confined spaces with limited cooling.
- Industrial lighting: High-intensity illumination with minimal maintenance requirements.
MCPCB Benefits:
- Significantly longer LED lifespan through enhanced thermal management.
- Maintained light output, preventing degradation.
- Reduced maintenance costs through improved reliability.
- Compact fixture designs with optimal thermal performance.
Automotive Electronics
Mission-Critical Applications:
- Engine control units operating in extreme temperature environments.
- Power steering systems require high-current motor control circuits.
- Battery management systems in EVs handle substantial power electronics.
Performance Advantages:
- Reliable operation from -40°C to +150°C.
- Vibration resistance for harsh road conditions.
- Thermal stability ensures consistent performance throughout vehicle life.
- Compliance with automotive quality standards.
Essential Applications:
- DC-DC converters requiring high-efficiency power conversion.
- Motor drives in industrial automation require continuous high-power operation.
- Solar inverters need thermal stability to maintain efficiency ratings.
Key Benefits:
- Improved efficiency through enhanced thermal management.
- Reduced cooling requirements, lowering system costs.
- Enhanced reliability in industrial environments.
- Optimal power density in compact designs.
High-Performance Requirements:

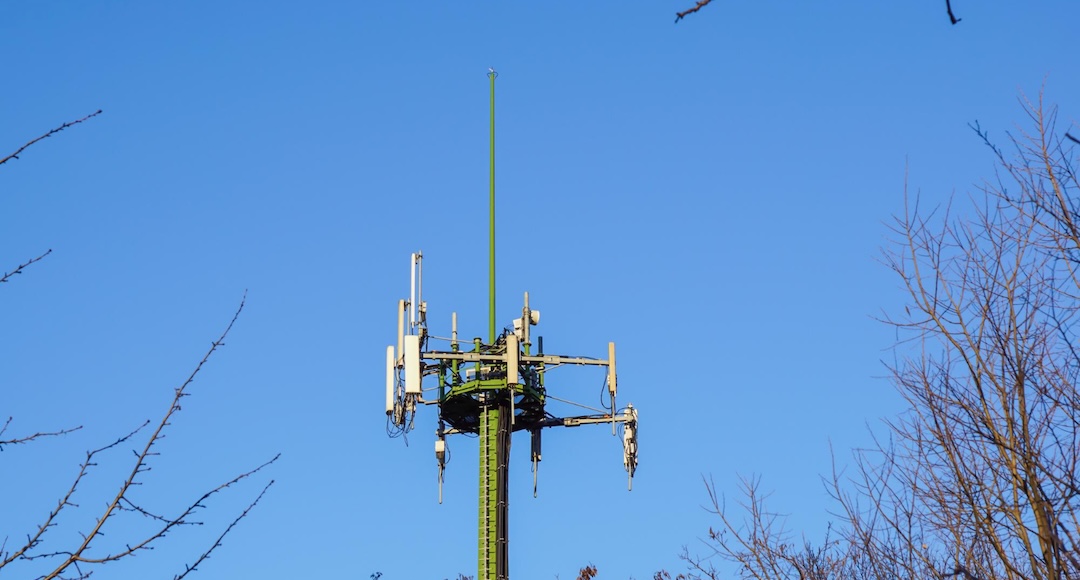

- 5G base stations utilizing high-power RF amplifiers.
- Power amplifiers in signal transmission equipment.
- Network infrastructure requires 24/7 operation reliability.
MCPCB Advantages:
- Thermal stability ensures signal integrity.
- Equipment reliability in outdoor installations.
- Efficient heat dissipation in high-power RF applications.
- Reduced cooling system complexity.
Demanding Applications:
- Welding equipment requiring high-current control circuits.
- Motor control centers in factory automation.
- Industrial systems operating in harsh environments.
Performance Benefits:
- Reliable operation in extreme industrial conditions.
- Precision control without thermal-induced drift.
- Extended operational life, reducing maintenance costs.
- Enhanced system integration capabilities.
How Do You Choose the Right Metal Core PCB for Your Application?
Selecting the optimal MCPCB requires a systematic evaluation of thermal, electrical, mechanical, and economic factors specific to your application:
Step 1: Assess Thermal Requirements
Power Dissipation Analysis:
- Calculate total heat generation, including I²R losses and component power dissipation.
- Determine the required thermal conductivity based on acceptable component temperatures.
- Consider thermal derating requirements throughout the operating temperature range.
- Evaluate available cooling methods and space constraints.
Material Selection Guidelines:
- Aluminum core: Cost-effective thermal management (1-8 W/mK).
- Copper core: Maximum thermal performance (200+ W/mK).
- Steel core: Specialized magnetic applications.
Step 2: Define Electrical Specifications
Current Handling Requirements:
- Determine maximum current loads for power distribution circuits.
- Evaluate voltage isolation needs between circuit layers and the metal base.
- Consider impedance requirements for high-frequency applications.
- Assess signal integrity needs for mixed-signal designs.
Step 3: Environmental and Mechanical Considerations
Operating Environment Analysis:
- Temperature range requirements, including ambient and internal heat generation.
- Vibration and shock specifications for mobile or industrial applications.
- Chemical exposure, humidity, and contamination factors.
- Size and weight constraints imposed by the final product design.
Step 4: Economic and Lifecycle Factors
Total Cost of Ownership:
- Balance initial MCPCB costs against eliminated cooling components.
- Consider volume requirements and their impact on pricing.
- Analyze long-term maintenance and replacement expenses.
- Evaluate supplier support and component availability.
Common Selection Pitfalls to Avoid:
- Choosing based solely on initial cost without considering lifecycle expenses.
- Underestimating environmental requirements leads to premature failures.
- Insufficient planning for thermal expansion and mechanical stress.
- Inadequate evaluation of supplier long-term support capabilities.
Why Choose KINGBROTHER for Your Metal Core PCB Manufacturing Needs?
KINGBROTHER’s 28+ years of PCB manufacturing expertise, combined with advanced MCPCB capabilities, positions us as an established metal core PCB manufacturer providing optimized solutions for complex thermal management applications.
Advanced Metal Core PCB Manufacturing Specifications
Industry-Leading Capabilities:
- Copper Thickness: Up to 18 OZ for prototyping, 6 OZ for mass production.
- Thermal Conductivity Range: 1-8 W/mK, serving diverse application needs.
- Base Materials: Aluminum for cost-effectiveness, copper for maximum performance, specialized alloys for specific applications.
- Surface Finishes: HASL, OSP, ENIG, ENEPIG, supporting various assembly requirements.
Quick Turn Metal Core PCB Services:
- 24-48 hour metal core PCB prototype delivery for urgent development projects.
- No minimum order quantity (MOQ) requirements, providing flexibility from prototype through volume production.
- Design for manufacturability (DFM) optimization, ensuring production success.
Comprehensive Quality Certifications
As an experienced metal core PCB supplier, KINGBROTHER maintains industry-leading certifications, ensuring consistent quality:
- ISO 9001: Quality management systems certification.
- ISO 14001: Environmental management, ensuring responsible manufacturing.
- ISO/TS 16949: Automotive quality standards compliance.
- ISO 13485: Medical device quality management.
- UL Certification: Safety compliance for critical applications.
Specialized Industry Expertise
Automotive Applications:
- ISO/TS 16949 compliance enabling supply to automotive OEMs.
- Extensive experience with harsh environment designs.
- Understanding of automotive electronics thermal requirements.
LED and Power Electronics:
- Optimized thermal designs maximizing LED performance and lifespan.
- High-current handling expertise for power applications.
- Thermal optimization for industrial environments.
Global Manufacturing and Support:
- Five design centers and four manufacturing bases are strategically located.
- Global delivery network serving 18,000+ customers worldwide.
- 24/7 technical support for design optimization and troubleshooting.
Metal Core PCB Design Guidelines and Support
Our comprehensive PCB design guidelines ensure optimal performance:
- Thermal modeling and simulation services.
- Component placement optimization for heat dissipation.
- Layer stack-up design for mechanical stability.
- Testing and validation support throughout development.
Get Started with Professional Metal Core PCB Manufacturing
Metal core PCBs represent a specialized solution for modern high-power electronics, delivering enhanced heat dissipation, enhanced power handling, and improved reliability compared to standard PCBs. From automotive electronics operating in extreme environments to LED lighting systems requiring extended lifespans, MCPCBs enable applications previously impossible with traditional PCB technology.
The metal core PCB market continues expanding as industries recognize the critical importance of thermal management in high-power applications. KINGBROTHER’s advanced manufacturing capabilities, comprehensive certifications, and 28+ years of expertise provide the foundation for successful MCPCB implementation across diverse industries.
Ready to solve your thermal management challenges?
Contact our technical team to discuss your metal core PCB requirements and discover how our advanced capabilities can optimize your product’s thermal performance while accelerating time-to-market. Our engineers will work with you to identify the optimal MCPCB solution that meets your performance, environmental, and lifecycle requirements.
Want to know which metal substrate is best for your product?
Contact our technical team to book a free technical evaluation now and discuss your metal core PCB requirements. Our thermal management experts will analyze the selection for you free of charge and give you design recommendations that can optimize your product’s thermal performance while accelerating time-to-market.
