Key Takeaways
- Higher Thermal Performance: Insulated Metal Substrate PCB technology features 5-20x better thermal conductivity (1-8 W/m·K) compared to standard FR4 (0.3-0.4 W/m·K).High Power Density Capability: Junction temperatures 20-50°C lower with 2-5x higher current capacity and 10-50 W/cm² heat dissipation.
- Power Application Requirements: LED lighting, automotive electronics, power systems, 5G telecommunications, and medical devices require IMS PCB material.
- Integrated Thermal Management: Fewer external cooling components needed with improved EMI shielding performance.
- Extended System Reliability: 3-10x longer component lifespan and reduced thermal-related failures vs. standard PCBs.
- Manufacturing Expertise: KINGBROTHER’s 28+ years of experience achieving 0.5-3.0 °C·cm²/W thermal resistance with comprehensive industry certifications.
Introduction
When high-power LED arrays fail after months of operation, or automotive electronics overheat, causing system shutdowns, inadequate thermal management at the PCB level is often the root cause. In power electronics applications generating 50+ watts per square inch, standard FR4 PCBs become thermal bottlenecks, leading to component failures, reduced efficiency, and system downtime.

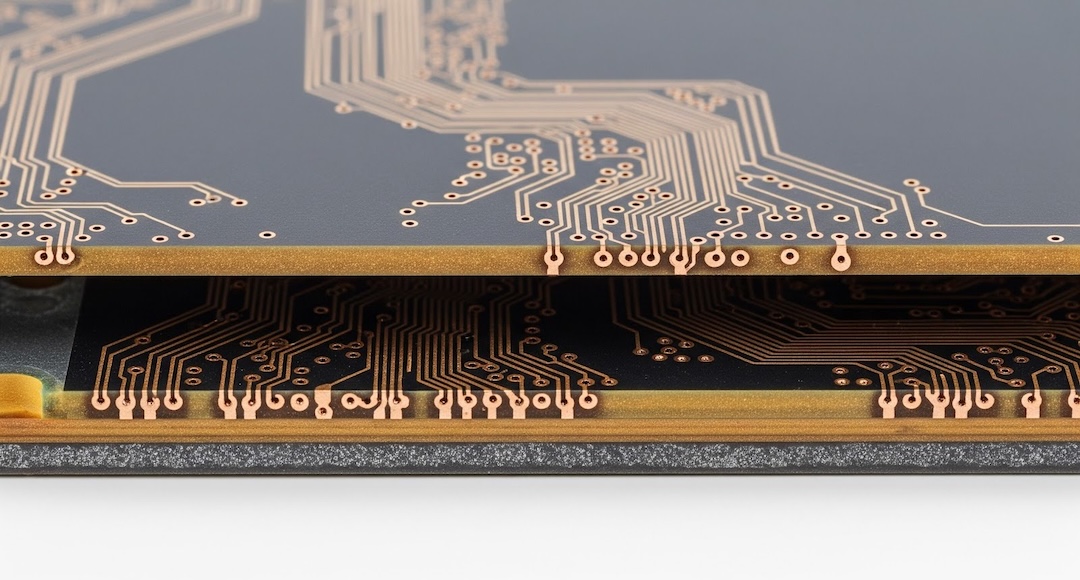

Insulated Metal Substrate (IMS) PCB technology offers thermal conductivity up to 20 times better than traditional boards while maintaining electrical isolation. As power densities continue increasing across LED lighting, electric vehicles, 5G infrastructure, and industrial power systems, engineers need thermal management solutions that maintain electrical isolation while dissipating heat efficiently.
Why Are Standard PCBs Failing in High-Power Applications?
Standard PCBs struggle in high-power applications; systems generating significant heat, like LED lighting, automotive electronics, and power conversion systems, because they can’t effectively remove heat from components. This thermal management failure causes component breakdowns, reduced performance, and system failures across the automotive, telecommunications, and power industries.
How Poor Heat Dissipation Damages Critical Components
Standard FR4 PCBs act like thermal insulators, with a low thermal conductivity of just 0.3-0.4 W/m·K. To put this in perspective, aluminum conducts heat 500 times better than FR4, while copper conducts heat 1,000 times better. This creates heat buildup at component mounting points, where temperatures can exceed safe operating limits.
Critical Failure Mechanisms:
- Hot spot formation: Component temperatures exceed 150°C, leading to accelerated aging and premature failure.
- Thermal cycling stress: Temperature fluctuations cause solder joint fatigue and board delamination.
- Power conversion losses: System efficiency drops 2-5% per 10°C temperature rise above optimal operating conditions.
Real-World LED System Failures
LED lighting systems demonstrate the impact of inadequate thermal management on performance and longevity:
Performance Degradation Statistics:
- Light output drops 50% when LED junction temperatures exceed 100°C – equivalent to losing half the illumination capacity.
- Color temperature shifts 200-500K due to thermal stress, causing visible color changes that affect the lighting system functionality.
- Lifespan reduction from 50,000 to 5,000 hours without proper thermal control – a 90% reduction in operational life.
- Driver circuit failures increase 3-5x under sustained thermal stress, causing system shutdowns.
Why Automotive Electronics Fail More Often in High-Temperature Zones
Automotive electronics operate in conditions that exceed standard PCB material capabilities. Engine compartments and power systems create thermal and mechanical stresses that standard FR4 cannot accommodate:
Operating Conditions:
- Extreme temperature range: From -40°C winter startup to +150°C under-hood operation – a 190°C temperature span.
- High-current applications: EV battery management systems handle 400+ amp charging currents in confined spaces.
- Safety system degradation: ADAS and power steering modules experience performance issues that compromise vehicle safety.
- Warranty impact: Thermal failures account for a significant portion of automotive electronics warranty claims.
How Thermal Constraints Limit Power Electronics Performance
The thermal management market exists because power electronics push standard PCBs beyond their thermal limits. These systems face specific challenges that standard materials cannot address:
Design Constraints Imposed by Poor Thermal Performance:
- Oversized cooling systems required: Heat sinks often larger than the electronics themselves, adding weight and cost.
- Performance throttling is necessary: Systems operate at reduced power levels to prevent thermal damage, limiting capability.
- Complex active cooling: Fans and liquid cooling add failure points and maintenance requirements.
- Reduced power density: Engineers must balance performance against reliability to prevent thermal failures.
The Result: Standard PCBs force engineers to balance performance against reliability – a trade-off that increases costs and limits innovation in high-power applications.
What is an IMS PCB and How Does It Solve Thermal Challenges?
An Insulated Metal Substrate PCB (IMS PCB) is a printed circuit board featuring a metal base layer (typically aluminum or copper) with a thin dielectric insulation layer, topped by a copper circuit layer. This construction creates a thermal pathway while maintaining electrical isolation between the circuit and the metal base.
The IMS structure solves thermal challenges by providing direct heat conduction from heat-generating components to the metal base, which acts as an integrated heat spreader and heat sink.
| Feature | Standard FR4 PCB | IMS PCB |
| Thermal Conductivity | 0.3-0.4 W/m·K | 1-8 W/m·K |
| Thermal Resistance | 20+ °C·cm²/W | 0.5-3.0 °C·cm²/W |
| Heat Dissipation | 1-2 W/cm² | 10-50 W/cm² |
| Operating Temperature | 0°C to +130°C | -55°C to +150°C |
| Current Carrying | Limited | 2-5x higher |
| EMI Shielding | Poor | 20-40 dB improvement |
| Component Lifespan | Standard | 3-10x longer |
| Manufacturing Complexity | Low | High |
| Initial Cost | Lower | Higher |
Understanding these performance differences explains why specific industries have adopted IMS PCB technology for their thermal management applications.
IMS Material Properties and Thermal Characteristics
Technical Terms:
- Thermal resistance (°C·cm²/W): Lower values indicate better heat transfer
- Junction temperature: Operating temperature of semiconductor components
- EMI shielding: Electromagnetic interference protection
Metal Base Layer Options:
- Aluminum Base: Cost-effective with 160-200 W/m·K thermal conductivity
- Copper Base: Higher performance with 380-400 W/m·K thermal conductivity
- Steel Base: Applications requiring magnetic properties
Dielectric Layer Properties:
- Thermal conductivity: 1-8 W/m·K, providing heat transfer
- Electrical breakdown voltage: 2000-4000V, ensuring electrical isolation
- Thickness range: 50-200 μm optimized for thermal and electrical performance
What Are the Key Advantages of IMS PCBs for Thermal Management?
Enhanced Thermal Performance
IMS PCB technology delivers thermal conductivity improvements of 5-20x compared to standard FR4:
- Direct thermal pathway: Heat conduction reduces thermal resistance
- Full board heat spreading: Distribution vs. localized FR4 hot spots
- Reduced thermal interface materials: Eliminates multiple interface layers
- Lower junction temperatures: 20-50°C reduction at equivalent power levels
Improved Electrical and Mechanical Performance
Beyond thermal advantages, IMS PCBs offer additional benefits:
- EMI shielding improvement: Through a grounded metal base layer
- Higher current capacity: 2-5x ampacity with enhanced thermal dissipation
- Increased mechanical strength: Improved flexural strength, preventing connection failures
- Reduced parasitic inductance: In high-frequency applications above 100 MHz
System Reliability and Cost Benefits
Thermal management from IMS PCBs translates to measurable improvements:
- Extended component lifespan: 3-10x longer operational life within optimal thermal limits
- Enhanced thermal cycling: More temperature cycles before failure
- Stable performance: Minimal variation across -40°C to +85°C range
- Reduced cooling systems: Fewer external thermal management components needed
Which Industries and Applications Benefit Most from IMS PCBs?
Industry-Specific Applications and Requirements
This table outlines key industries that utilize Insulated Metal Substrate (IMS) PCBs, specifying their applications, power densities, and primary requirements.
| Industry | Applications | Power Density | Key Requirements |
| LED Lighting | Street lights, high-bay fixtures, automotive | 5-20 W/cm² | Junction temp control, 25+ year life |
| Automotive | EV charging, LED headlights, power steering | 10-25 W/cm² | High current handling, -40°C to +150°C |
| Medical | X-ray systems, MRI equipment, and patient monitoring | 5-15 W/cm² | ISO 13485 compliance, minimal drift |
| Telecommunications | 5G base stations, RF amplifiers, edge computing | 15-35 W/cm² | Signal integrity, frequency stability |
| Power Electronics | Solar inverters, motor drives, UPS systems | 20-50 W/cm² | Heat dissipation, high efficiency |
Critical Application Examples
High-Power LED Systems:
- Street lighting: 100+ watts, 25-year life
- Industrial high-bay: High thermal load environments
- Automotive headlights: Space constraints, reliability requirements
Electric Vehicle Power Systems:
- Battery management: 400+ amp charging currents
- Motor controllers: Thermal control for efficiency
- DC-DC converters: High reliability requirements
5G Infrastructure:
- RF amplifiers: Heat loads, signal quality
- Base station power supplies: Continuous operation
- Signal processing: Stable operation across temperatures
Medical Device Power Systems:
- X-ray and MRI: Minimal thermal drift requirements
- Patient monitoring: High reliability needs
- Surgical devices: Temperature control requirements
How to Select the Right IMS PCB Specifications?
Power and Thermal Requirements Assessment
Choose IMS PCB technology when applications require:
High Power Density (>5 W/cm²):
- LED arrays above 10W per component
- Power electronics with heat flux exceeding 20 W/cm²
- Applications requiring thermal performance
High Current Loads (>10 Amps):
- Motor drives and power inverters
- Battery management and charging systems
- High-power RF amplifiers
Mission-Critical Reliability:
- Medical devices requiring ISO 13485 compliance
- Automotive systems meeting ISO/TS 16949 standards
- Infrastructure equipment requiring high uptime
Material Selection and Cost Optimization
Performance-Critical Applications:
- Copper base IMS PCB material for thermal conductivity (380-400 W/m·K)
- Low thermal resistance dielectrics (0.5-1.5 °C·cm²/W)
- Thicker copper layers for enhanced current capacity
Cost-Sensitive Applications:
- Aluminum base provides thermal performance at a lower cost (160-200 W/m·K)
- Standard dielectric materials (1.5-2.5 °C·cm²/W) meet most requirements
- Optimize copper thickness based on actual current requirements
What Design Considerations Are Critical for IMS PCBs?
Thermal Management Design Guidelines
Component Placement Strategy:
- Position heat-generating components directly over metal base
- Maintain 5mm minimum spacing between high-power components
- Place temperature-sensitive circuits away from high-power areas
Thermal Via Implementation:
- Strategic placement for heat transfer paths to the metal base
- Recommended spacing: 0.5-1.0mm around high-power components
- Minimum thermal via diameter: 0.2mm for optimal conduction
Manufacturing and Design Constraints
Layer Stack-up Considerations:
- Account for thermal expansion differences between materials
- Select appropriate prepreg materials for thermal interface optimization
- Balance electrical and thermal performance requirements
Fabrication Limitations:
- Maximum aspect ratios: 8:1 for through-hole vias with metal cores >2mm
- Minimum drilling: 0.15mm mechanical, 0.10mm laser drilling
- Impedance control adjustments for metal base effects
Why Choose KINGBROTHER as Your IMS PCB Manufacturing Partner?
KINGBROTHER’s 28+ years of expertise position us as a leading IMS PCB manufacturer for thermal management applications. Our capabilities address electronics thermal challenges:
Advanced IMS Manufacturing Capabilities
- Metal base substrates: Aluminum (160-200 W/m·K) and copper (380-400 W/m·K) options
- Thermal conductivity range: 1-8 W/m·K dielectric materials for heat transfer optimization
- Copper thickness options: 1-18 OZ layers enabling high current handling
- Thermal resistance achievement: 0.5-3.0 °C·cm²/W across various configurations
Industry Expertise and Certifications
- LED thermal solutions: Junction temperature control within ±5°C
- Automotive qualification: -40°C to +150°C operation meeting ISO/TS 16949 standards
- Power electronics capability: 10-50 W/cm² heat dissipation for demanding applications
- 5G infrastructure support: High-frequency performance up to 28 GHz
Quality Assurance and Production Flexibility
- Comprehensive certifications: ISO 9001, ISO 14001, ISO 13485, UL, ISO/TS 16949
- Zero minimum orders: Prototype through high-volume production support
- Quick-turn prototyping: 24-48 hour turnaround for urgent requirements
- Global reach: 18,000+ customers across 30+ countries
- Proprietary testing: Thermal resistance validation and 4000V dielectric testing
Competitive Advantages:
- The only manufacturer offering 18 OZ copper on IMS substrates in Asia
- Proprietary thermal resistance testing protocols
- 24-hour engineering support across multiple time zones
Frequently Asked Questions About IMS PCBs
What is IMS PCB material, and how does it differ from standard PCB materials?
IMS PCB material consists of three layers: a metal base (aluminum or copper) providing thermal conductivity, a thin dielectric insulation layer maintaining electrical isolation, and a copper circuit layer for component mounting. The dielectric layer offers 1-8 W/m·K thermal conductivity while maintaining 2000-4000V electrical breakdown voltage, compared to FR4’s 0.3-0.4 W/m·K thermal conductivity.
How much do IMS PCBs cost compared to standard PCBs?
IMS PCBs have higher initial costs due to specialized materials and manufacturing processes. However, they provide long-term value through reduced cooling system requirements, fewer warranty claims, and extended component lifespans. Total cost of ownership often favors IMS PCBs in high-power applications requiring thermal management.
What are common IMS PCB design mistakes to avoid?
Common mistakes include inadequate thermal via placement, insufficient spacing between high-power components, improper material selection for thermal resistance requirements, and failure to account for thermal expansion differences in layer stack-up design. Working with an experienced IMS PCB manufacturer helps avoid these issues.
How long do IMS PCBs last in automotive applications?
In automotive applications, IMS PCBs typically provide 3-10x longer component lifespan compared to standard PCBs when properly designed. With appropriate thermal management, IMS PCBs can meet automotive requirements for 15+ years of operation across -40°C to +150°C temperature ranges while maintaining ISO/TS 16949 quality standards.
How does KINGBROTHER ensure IMS PCB quality and reliability?
Quality assurance includes comprehensive certifications (ISO 9001, ISO 14001, ISO 13485, ISO/TS 16949, UL), thermal performance testing, and electrical characterization. Our manufacturing processes include thermal resistance validation, dielectric strength testing up to 4000V, and reliability assessment to ensure IMS PCBs meet thermal and electrical requirements across automotive, LED, power electronics, and telecommunications applications.
Get Started with Professional IMS PCB Manufacturing Solutions
IMS PCB technology has become important for electronics where thermal management impacts performance, reliability, and cost-effectiveness. With thermal conductivity improvements of 5-20x over standard FR4, IMS PCB material enables higher power densities, improved system reliability, and cost-effective thermal management solutions.
From LED lighting requiring temperature control to electric vehicle power electronics handling hundreds of amps, IMS PCBs solve thermal challenges across diverse applications. Success depends on selecting appropriate thermal resistance values, IMS PCB material compositions, and electrical specifications matching your thermal management requirements.
Ready to solve your thermal management challenges?
Contact KINGBROTHER’s technical team to discuss your IMS PCB requirements and discover how our manufacturing capabilities can optimize your thermal performance while meeting cost and reliability targets.
