High-Frequency PCB Design & Manufacturing: Solutions, Materials & Applications
August 8, 2025
When 5G base stations experience signal integrity issues, the results include dropped calls, reduced coverage, and revenue losses. As electronic systems operate beyond 1GHz frequencies, traditional FR4 materials face performance limitations, causing signal loss and system failures in mission-critical applications.
High-frequency PCBs provide an alternative solution, offering stable electrical properties, reduced signal loss, and precise performance control. This guide explores when high-frequency PCB design solutions are needed, how to select optimal materials, and what manufacturing expertise ensures project success.
Standard FR4 materials hit a performance wall above 1GHz, creating three critical problems:
FR4’s loss tangent (Df) of 0.02 at 1GHz causes significant signal attenuation. At 10GHz, this translates to 3-5dB additional loss per inch compared to high-frequency materials—enough to cripple system performance.
FR4’s dielectric constant varies dramatically with frequency, temperature, and humidity. This instability makes consistent impedance control impossible, leading to signal reflections and system failures.
With a glass transition temperature around 130°C, FR4 materials begin losing structural integrity under thermal stress, causing performance drift in high-power applications.
Knowing where high-frequency RF PCBs are indispensable helps engineers determine when their projects require these specialized solutions.
The Challenge: 5G systems operating at 24-40GHz require exceptional signal integrity to maintain coverage and efficiency.
Base Station Power Amplifiers
Massive MIMO Antenna Arrays
77GHz Collision Avoidance Systems
Multiple Radar Arrays for Autonomous Driving

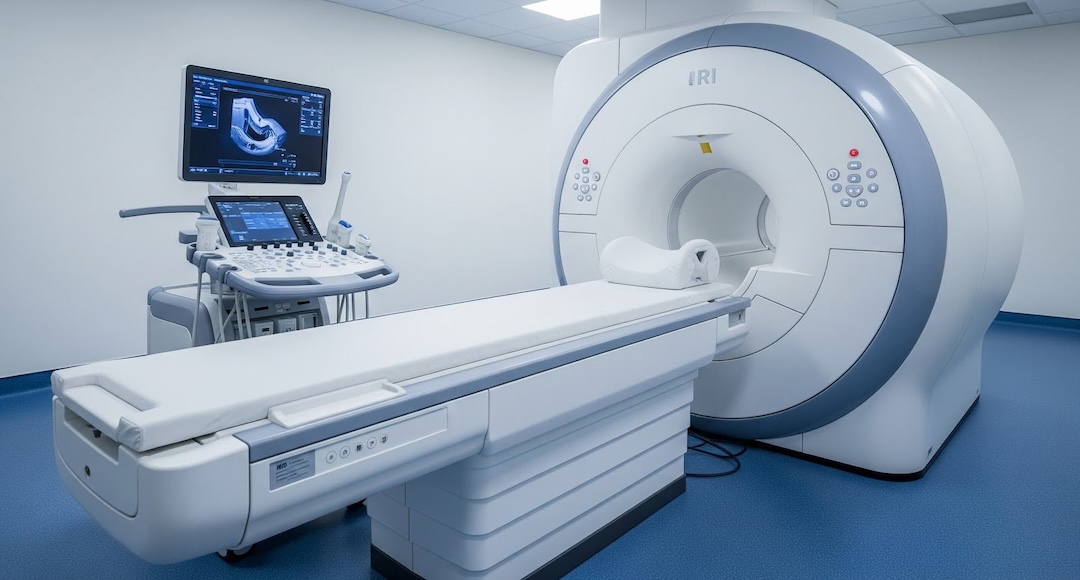

MRI and Ultrasound Equipment
Recognizing these real-world consequences will help you realize when high-frequency PCBs transition from “nice-to-have” to “mission-critical.”
The fundamental difference lies in three key electrical properties that determine performance at high frequencies.
| Parameter | What It Means | FR4 Performance | High-Frequency PCB Performance |
|---|---|---|---|
| Dielectric Constant (Dk) | Signal speed consistency | Varies ±0.3 | Stable ±0.05 |
| Loss Tangent (Df) | Signal energy absorption | 0.02 @ 1GHz | 0.0013 @ 10GHz (15x lower loss) |
| Thermal Coefficient (TCDk) | Stability with temperature | >400 ppm/°C | <50 ppm/°C |
Selecting PCB materials for high-frequency applications requires understanding how material properties affect signal integrity, thermal performance, and manufacturing feasibility, balancing performance requirements against cost and manufacturing constraints. Effective PCB material management for high-frequency applications involves systematic evaluation of electrical, thermal, and mechanical properties to ensure long-term project success.
Step 1: Define Your Requirements
Step 2: Evaluate Material Options
Consider the following material categories based on your specific needs:
| Frequency Range | Material Category | Typical Applications |
|---|---|---|
| <1GHz | Standard FR4 | Digital circuits, low-speed RF |
| 1-10GHz | Entry-level HF | WiFi, Bluetooth, lower 5G bands |
| 10-30GHz | Advanced HF | Automotive radar, high-band 5G |
| >30GHz | Ultra-low loss | Emerging 6G, advanced radar |
High-Frequency PCB Materials Comparison
This table compares different high-frequency PCB materials based on their properties, applications, and cost.
| Material | Dk | Df (10GHz) | Best For | Cost vs FR4 |
|---|---|---|---|---|
| Rogers RO3003 | 3.00 ±0.04 | 0.0013 | 77GHz radar, satellites | 4–6x |
| Rogers RO4350B | 3.48 ±0.05 | 0.0037 | 5G infra, GPS | 3–4x |
| Taconic TLY-5 | 2.20 ±0.02 | 0.0009 | Millimeter-wave test equipment | 5–7x |
| Taconic TSM-DS3 | – | – | Digital + embedded RF | Premium |
| Shengyi SG Series | ~ Rogers-like | ~ Rogers-like | Cost-sensitive HF | 2–3x |
Determining the best high-frequency material PCB for your specific needs requires careful consideration of performance requirements, environmental conditions, and cost constraints. The optimal material selection depends on balancing these factors:
| Scenario | Recommended Material |
|---|---|
| Maximum Performance | Rogers RO3003 / Taconic TLY-5 |
| Balanced Cost/Performance | Rogers RO4350B |
| Cost-Sensitive | Shengyi SG300 Series |
| Digital + RF Hybrid | Taconic TSM-DS3 |
Proper high-frequency PCB design techniques are essential to realize the full potential of high-frequency materials. Successful high-frequency PCB board design requires attention to transmission line theory, electromagnetic effects, and thermal management principles that don’t significantly impact lower-frequency circuits.
Impedance mismatches cause signal reflections, reducing system performance. High-frequency designs require precise control:
| Trace Type | Target Impedance | Tolerance Requirement |
|---|---|---|
| Single-ended RF | 50Ω | ±5% prototype, ±10% production |
| Differential Pair | 100Ω | ±5% prototype, ±10% production |
Effective high-frequency RF PCB design integrates these routing strategies with proper grounding techniques to achieve optimal signal integrity and electromagnetic compatibility across the entire frequency spectrum. This, in turn, ensures your high-frequency PCB delivers optimal performance. Additionally, validation through simulation and testing is necessary before moving to production.
Effective RF PCB validation requires a systematic approach combining electromagnetic simulation, physical measurements, and pre-compliance testing to identify and resolve design issues before costly fabrication. Comprehensive validation prevents costly prototype failures and accelerates development timelines through simulation, measurement, and testing techniques.
| Validation Type | What’s Measured | Tools / Methods | Acceptance Criteria |
|---|---|---|---|
| S-Parameter Analysis | Insertion & return loss | HFSS, CST simulation | Return loss < –15dB |
| Signal Integrity | Eye diagrams, timing | SI simulation tools | Meets margins |
| Thermal Analysis | Heat distribution | Thermal modeling | No hotspot failures |
| Production Testing | Impedance, via & connector quality | TDR, network analyzer | Matches simulation |
| Compliance | IPC, MIL, ISO standards | Standard test protocols | Certifiable performance |
Manufacturing high-frequency PCBs requires specialized processes and tight control over critical parameters. Leading high-frequency PCB manufacturers must master advanced techniques to deliver consistent quality across demanding applications.
| Control Point | Requirement | Technique |
|---|---|---|
| Line Width Tolerance | ±0.5 mil | Advanced photolithography |
| Impedance Control | ±5% prototype, ±10% production | Real-time monitoring |
| PTFE Handling | Prevent delamination, ensure adhesion | Surface treatment, controlled drilling |
| Antenna Patterning | Precise trace geometry, layer alignment | Optimized stack-up + via strategy |
PTFE-based materials require specialized processing:
Pattern Accuracy Requirements
Multi-layer Antenna Considerations
With 28+ years of PCB manufacturing expertise, KINGBROTHER provides comprehensive high-frequency PCB manufacturing solutions from prototype through production. As a trusted high-frequency PCB manufacturer, we combine advanced technology with rigorous quality control to deliver exceptional results.
| Specification | Prototyping Capability | Mass Production Capability |
|---|---|---|
| Layer Count | Up to 28 layers | Up to 16 layers |
| Line Width / Space | 2.0 / 2.0 mil | 2.5 / 2.5 mil |
| Impedance Control | ±5% | ±10% |
| Surface Finishes | ENIG, OSP, Hard Gold | ENIG, OSP, Hard Gold |
| Brand | Series | Key Strength | Applications |
|---|---|---|---|
| Rogers | RO3003, RO4000 | Ultra-low loss, stable | 5G, radar, satcom |
| Taconic | TLY-5, TLX-8, TSM-DS3 | Specialized RF, hybrid digital | Millimeter-wave, high-speed |
| Shengyi | SG220/255/300, S7136H, SJ9036 | Balanced cost/performance | Volume production |
| Specialized | WL F4BTME/F4BTMS, FSD | Custom applications | High-reliability projects |
Rapid Prototyping
Production Scaling
Our high-frequency PCB board manufacturing processes ensure reliable, repeatable results, whether you need single prototypes or thousands of production units.
Design Support Services
Below are some cost comparisons between high-frequency and standard PCBs, as well as the total cost considerations when choosing HF PCB materials.
| Material Type | Cost Multiplier vs FR4 | Performance Benefit |
|---|---|---|
| Rogers RO4350B | 3-4x | Balanced performance/cost |
| Rogers RO3003 | 4-6x | Ultra-low loss |
| Taconic TLY-5 | 5-7x | Millimeter-wave capability |
| Shengyi SG300 | 2-3x | Cost-effective HF solution |
| Cost Factor | Impact |
|---|---|
| Design Complexity | Higher engineering effort |
| Testing Requirements | Adds network analyzer validation costs |
| Manufacturing Yield | Tighter tolerances may lower yields |
| System Efficiency | Reduces downstream system costs |
| Reliability | Fewer failures, lower warranty costs |
KINGBROTHER’s comprehensive support ensures successful project outcomes from concept through production.
Requirements Assessment
Our engineering team evaluates your specific needs:
Design Optimization
Manufacturing Standards
| Cost Factor | Impact |
|---|---|
| Design Complexity | Higher engineering effort |
| Testing Requirements | Adds network analyzer validation costs |
| Manufacturing Yield | Tighter tolerances may lower yields |
| System Efficiency | Reduces downstream system costs |
| Reliability | Fewer failures, lower warranty costs |
Our commitment to delivering quality high-frequency PCB solutions is demonstrated through rigorous quality assurance processes and continuous improvement initiatives.
Validation Support
High-frequency PCBs enable modern technologies from 5G infrastructure to autonomous vehicle safety systems. Success requires understanding when high-frequency materials are necessary, selecting appropriate materials, and partnering with a capable manufacturer.
KINGBROTHER’s 28+ years of expertise, manufacturing capabilities up to 28 layers, and comprehensive material portfolio make us a suitable partner for high-frequency PCB development. Our no-MOQ policy and rapid prototyping services enable faster time-to-market with performance results.
Ready to optimize your high-frequency design?
Contact our technical team today to discuss your specific requirements and discover how KINGBROTHER’s expertise in high-frequency PCB manufacturing can accelerate your project timeline while delivering the quality and reliability your applications demand.
High-frequency materials become necessary above 1GHz, where FR4’s loss tangent of 0.02 causes significant signal degradation. For frequencies 1-5GHz, entry-level materials like Rogers RO4350B provide adequate performance. Above 10GHz, premium materials like RO3003 become essential for maintaining signal integrity in demanding applications.
Standard manufacturing tolerances (±10-15%) create impedance variations that cause signal reflections at 5GHz. KINGBROTHER’s ±5% impedance control for prototyping and ±10% for production, combined with proper material selection, ensures consistent 50Ω impedance critical for WiFi performance.
Choose high-frequency PCBs when system requirements demand: signal loss <1dB at operating frequency, impedance control within ±5%, operation above 1GHz with tight phase matching, or temperature stability across -40°C to +125°C ranges that FR4 cannot reliably achieve.
Select RO4350B for balanced performance and cost in 1-10GHz applications like 5G base stations and GPS systems. Choose RO3003 for ultra-low loss requirements above 10GHz, such as 77GHz automotive radar and satellite communications, where maximum performance justifies the higher cost.
KINGBROTHER delivers ±5% impedance control for prototyping, enabling precise validation of high-frequency designs. Production quantities maintain ±10% tolerance with advanced process monitoring, ensuring consistent performance across volume manufacturing.
Through ISO 9001/13485 certifications, real-time impedance monitoring, comprehensive S-parameter testing, statistical process control across production runs, and material traceability, we ensure each batch meets specifications for critical high-frequency applications.
