Automotive PCB Manufacturing: Solutions, Applications & Testing Standards
August 28, 2025
Modern vehicles contain over 100 electronic control units managing everything from engine performance to autonomous driving systems. Behind these systems are specialized printed circuit boards that must operate reliably for 15+ years while enduring extreme conditions that would damage standard electronics within months.
PCB for the automotive industry requires dedicated production lines, stringent quality systems, and compliance with automotive-specific standards like IATF 16949 and AEC-Q qualifications. This guide examines what makes automotive PCB manufacturing different and how KINGBROTHER’s automotive-certified capabilities deliver the reliability modern vehicles require.
PCBs for automotive applications operate under different requirements compared to consumer electronics. The differences are foundational to safety, reliability, and regulatory compliance.
While ISO 9001 provides quality management basics, IATF 16949 adds automotive-specific requirements:
| Focus Area | ISO 9001 | IATF 16949 (Automotive) |
|---|---|---|
| Risk Management | General quality management | Mandatory risk-based assessments |
| Customer Requirements | General consideration | Integration of OEM-specific requirements |
| Process Validation | Limited scope | Statistical process validation is required |
| Continuous Improvement | Encouraged | Measurable results required |
| Supply Chain | Basic supplier management | Tiered supplier audits and full traceability |
The Automotive Electronics Council (AEC) sets qualification standards that exceed commercial electronics:
| Standard | Component Type | Qualification Requirement |
|---|---|---|
| AEC-Q100 | Integrated Circuits | Extensive stress testing across automotive conditions |
| AEC-Q101 | Discrete Semiconductors | Rigorous qualification with thermal & electrical cycling |
| AEC-Q200 | Passive Components | Long-term automotive reliability validation |
This table provides a concise comparison of key specifications between consumer electronics and automotive PCBs. The primary differences are driven by the need for automotive PCBs to operate reliably in harsh, safety-critical environments over a long lifespan.
| Specification | Consumer Electronics | Automotive PCBs |
|---|---|---|
| Operating Temperature | 0°C to +70°C | -40°C to +150°C |
| Expected Lifecycle | 2-5 years | 15+ years |
| Quality Standard | ISO 9001 | IATF 16949 |
| Component Qualification | Commercial grade | AEC-Q qualified |
| Environmental Testing | Basic | Extensive |
| Material Requirements | Standard FR4 | High-Tg, low-CTE |
| Documentation | Minimal | Complete PPAP |
The automotive industry’s transformation toward electrification and autonomy has created demand for specialized PCBs for automotive solutions.
| System | Key Requirements |
|---|---|
| Power Systems | Heavy copper PCBs (up to 6 OZ), thermal management, high-voltage isolation |
| Safety / ADAS | High-speed processing, redundant circuits, EMI/EMC compliance |
| Lighting | Precise LED current control, thermal dissipation |
| Infotainment | High-performance processing with automotive-grade reliability |
| Communication (V2X / 5G) | High-frequency PCB designs optimized for EMC environments |
| Electric Powertrains | High-voltage tolerance, motor control, and hundreds of kilowatts management |
Automotive PCB manufacturers must design solutions beyond standard specifications to meet vehicle platform requirements through material selection, thermal management, and regulatory compliance.
Automotive systems present specific challenges requiring tailored PCB solutions. Engine control units need different optimization than infotainment systems. The design process considers space constraints, thermal environments, and electromagnetic compatibility from the initial concept.
Modern automotive PCBs often combine analog sensor interfaces, high-speed digital processing, and power management circuits on single boards. Maintaining signal integrity across these domains while meeting EMC requirements requires specialized expertise and simulation tools.
Automotive environments create thermal challenges requiring custom heat dissipation strategies. This includes strategic thermal via placement, optimized copper pour designs, and material selection for thermal conductivity while maintaining electrical performance.
Automotive PCB manufacturing faces specific obstacles that differ from consumer electronics. These challenges require specialized solutions, dedicated facilities, and extensive validation processes.
| Challenge Type | Impact | Required Solution |
|---|---|---|
| Extreme Temperature Cycling | Solder cracking, delamination, and material degradation | High-Tg materials, low-CTE laminates, stress-tested solder |
| Continuous Vibration & Shock | Lead breakage, via cracking, intermittent failures | Reinforced vias, vibration-resistant assembly, and mechanical testing |
| Environmental Exposure | Corrosion, insulation breakdown, and premature failures | Protective coatings, sealed assemblies, and environmental validation |
| Regulatory Compliance | Long approval cycles, mandatory documentation | IATF 16949, AEC-Q stress testing, PPAP documentation |
| Manufacturing Process | Long validation & traceability requirements | Dedicated automotive lines, SPC, full supply chain tracking |
Selecting appropriate materials for automotive PCBs requires balancing performance, reliability, and cost considerations while meeting stringent automotive requirements.
Standard FR4’s glass transition temperature of 130-140°C proves insufficient for automotive engine bay environments reaching +150°C. High-Tg materials maintain mechanical stability and electrical properties throughout the automotive temperature range, preventing thermal degradation and dimensional changes.
FR4’s coefficient of thermal expansion (14-16 ppm/°C) creates significant stress during automotive temperature cycling from -40°C to +150°C. Low-CTE materials (10-12 ppm/°C) reduce thermal expansion mismatch with component packages, minimizing solder joint stress and improving 15+ year reliability.
Traditional flame retardants release halogenated compounds during thermal stress, violating automotive environmental regulations. Halogen-free formulations provide equivalent UL94-V0 flammability ratings while meeting RoHS and REACH compliance requirements for automotive applications.
| Material | Tg (°C) | CTE (ppm/°C) | Applications |
|---|---|---|---|
| Standard FR4 | 130-140 | 14-16 | Not suitable for automotive |
| High-Tg FR4 | 170-180 | 12-14 | Basic automotive applications |
| Rogers 4000 | >280 | 10-12 | High-frequency automotive |
| Shengyi S1170G | 175 | 13 | General automotive use |
| Specification | Automotive Requirement |
|---|---|
| Layer Count | 4–6 layers for sensors; 12–20 layers for ECUs with EMC shielding |
| Copper Thickness | 2–6 oz for high-current (50+ amps) power systems |
| Impedance Control | ±10% tolerance for CAN-FD, Ethernet, high-speed networks |
IATF 16949 establishes the foundation for automotive quality management systems. This standard requires risk-based thinking, customer-specific requirements integration, and continuous improvement processes specifically tailored for automotive supply chains.
AEC-Q provides component-level qualification requirements that ensure automotive reliability. These standards mandate stress testing far exceeding commercial electronics requirements, including:
ISO 26262 requirements apply to safety-critical automotive systems. This standard establishes safety integrity levels (ASIL) and requires systematic approaches to identifying and mitigating potential failures.
RoHS, REACH, and ELV directives ensure environmental compatibility throughout the automotive product lifecycle. These standards require comprehensive material documentation and supply chain management.
| Test | Standard / Method | Purpose |
|---|---|---|
| Temperature Cycling | AEC-Q100 (1000–3000 cycles, -40°C to +150°C) | Validates solder & material reliability |
| Vibration & Shock | SAE J1455 (5–2000Hz, up to 30G) | Ensures durability under vehicle conditions |
| Salt Spray Testing | ISO 9227 (240+ hrs, 5% NaCl) | Simulates long-term road salt exposure |
| Humidity & UV Testing | 85°C/85% RH cycling, UV radiation | Validates against environmental stress |
| PPAP Documentation | Production Part Approval Process | Comprehensive compliance package for OEMs |
Meeting automotive PCB requirements demands more than standard electronics manufacturing capabilities
As a specialized automotive PCB manufacturer, KINGBROTHER has developed comprehensive systems that address every aspect of automotive electronics production. Our automotive PCB fabrication and automotive PCB assembly capabilities are built on 28+ years of experience serving demanding industries, with automotive-specific processes that ensure the reliability modern vehicles require.
Achieving the best automotive PCB performance requires integrated expertise spanning materials science, process engineering, and quality systems designed specifically for automotive applications.

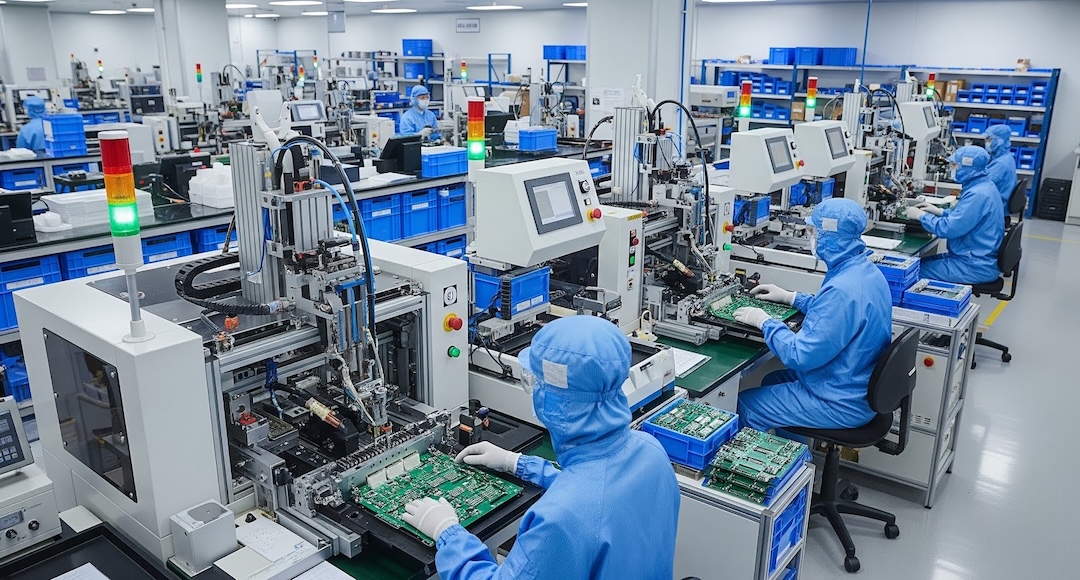

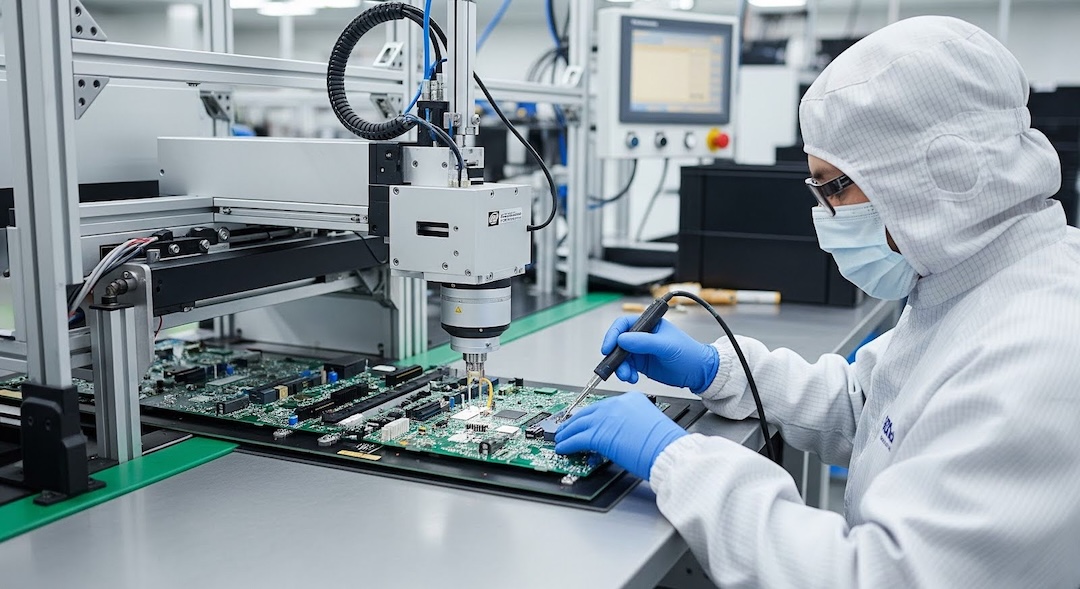

KINGBROTHER maintains dedicated automotive electronics production lines with specialized environmental controls, anti-static protocols, and cleanliness standards exceeding general electronics manufacturing requirements. These dedicated lines ensure automotive quality standards throughout production.
Our automotive production capabilities include:
KINGBROTHER’s technical capabilities address the full spectrum of automotive PCB requirements from basic sensor interfaces to sophisticated power electronics:
| Technology | Capability | Automotive Application |
|---|---|---|
| Multi-Layer PCBs | Up to 32 layers | Complex ECU applications |
| Heavy Copper | Up to 6 OZ | EV battery, motor control, and charging |
| High-Frequency | Rogers 4000 series | Radar, V2X, 5G systems |
| Rigid-Flex | Up to 20 total layers, 12 flex | Space-constrained modules, connector elimination |
| Automotive Testing | Full AEC-Q environmental & electrical testing | Long-term reliability validation |
| Documentation Support | Full PPAP & FAI | OEM qualification and traceability |
KINGBROTHER provides comprehensive testing and validation services specifically designed for automotive requirements:
KINGBROTHER includes temperature cycling, humidity exposure, and thermal shock testing per automotive standards. Our testing capabilities validate long-term reliability under automotive environmental conditions.
KINGBROTHER tests across automotive temperature ranges with specialized test equipment calibrated for automotive requirements. This testing ensures electrical performance throughout the automotive operational envelope.
KINGBROTHER provides extended stress testing protocols that simulate years of automotive operation. Our testing capabilities support customer qualification requirements and ongoing reliability monitoring.
KINGBROTHER provides all required documentation for automotive customer approval, including dimensional validation, material certifications, and process capability studies.
KINGBROTHER’s automotive solutions balance performance requirements with cost optimization through:
KINGBROTHER leverages extensive automotive material qualification to recommend cost-effective solutions that meet performance requirements without over-specification.
KINGBROTHER provides early design feedback that improves manufacturability while reducing costs. Our automotive design expertise helps optimize designs for both performance and production efficiency.
KINGBROTHER offers no minimum order quantity requirements, enabling cost-effective prototyping and low-volume production. This flexibility supports automotive development cycles and pilot production requirements.
KINGBROTHER accelerates automotive development cycles with rapid prototype delivery. Our automotive-certified quick-turn services maintain automotive quality standards while reducing development timelines.
The automotive industry’s evolution creates opportunities for specialized manufacturers of automotive PCB products. KINGBROTHER’s automotive PCB manufacturer capabilities include IATF 16949 certified processes, dedicated production lines, and comprehensive expertise spanning heavy copper power electronics, high-frequency communication systems, and complex rigid-flex designs.
Ready to advance your automotive electronics project?
Contact our automotive specialists today to discuss your specific requirements and discover how KINGBROTHER’s automotive-certified capabilities can accelerate your development while ensuring compliance and reliability.
IATF 16949 is the global automotive quality standard extending ISO 9001 with automotive-specific requirements. For KINGBROTHER, this certification ensures manufacturing processes meet automotive expectations for risk management and continuous improvement.
AEC-Q standards establish reliability requirements through extensive stress testing. KINGBROTHER’s designs incorporate AEC-Q qualified components, ensuring reliability throughout 15+ year lifecycles.
Automotive testing requires extended temperature ranges (-40°C to +150°C), thousands of hours of stress testing, and environmental exposure validation. KINGBROTHER follows automotive-specific standards with extended durations.
KINGBROTHER’s materials feature high glass transition temperatures (Tg > 170°C), low thermal expansion, and halogen-free formulations meeting environmental regulations through extensive qualification testing.
