Key Takeaways

  • Enhanced Thermal Performance: Aluminum core PCBs offer 3-26× better thermal conductivity than FR4, reducing component temperatures by 30-60°C.
  • Extended Component Lifespan: LED systems achieve 100,000+ hours of  operational life compared to 25,000 hours with traditional boards.
  • Higher Power Density: Systems achieve 2-3× power density improvements while maintaining safe junction temperatures without external cooling.
  • Enhanced Mechanical Durability: Aluminum substrates provide 3-5× stronger construction with improved vibration resistance for demanding environments.
  • Economic Long-Term Value: Total ownership costs are lower through extended component life and eliminated cooling systems despite higher initial investment.
  • Critical Industry Applications: Essential for automotive electronics, LED lighting, 5G telecommunications, power electronics, and renewable energy, requiring thermal management.

Introduction

Why do LED systems fail after 25,000 hours while others run for 100,000+ hours? The answer lies in thermal management. In today’s high-performance electronics, heat dissipation determines product success or failure, from electric vehicle power systems channeling hundreds of amps to 5G base stations operating at millimeter-wave frequencies.

Standard FR4 PCBs create thermal bottlenecks that limit performance and reliability. Engineers across industries are discovering that thermal constraints, not electrical limitations, determine the ultimate performance boundaries. Aluminum core PCBs offer thermal conductivity up to 8 times higher than standard materials, significantly improving thermal management in high-power applications.

Why Are Standard PCBs Failing in High-Heat Applications?

Standard PCBs struggle in high-power applications; systems generating significant heat, like LED lighting, automotive electronics, and power conversion systems, because they can’t effectively remove heat from critical components. This thermal management limitation causes component breakdowns, reduced performance, and costly system failures across automotive, telecommunications, and power industries.

How Poor Heat Dissipation Damages Critical Components

Standard FR4 PCBs act like thermal insulators, with a low thermal conductivity of just 0.3 W/m·K. To put this in perspective, copper conducts heat 1,300 times better than FR4. This creates excessive heat accumulation at component mounting points, where temperatures can exceed safe operating limits.

Real-World LED System Failures:

  • Street lighting efficiency drops 5.93% when LED junction temperatures exceed 90°C – the equivalent of losing one light in every 17-lamp installation.
  • Junction temperatures above 125°C cause permanent LED degradation and visible color shifts that compromise lighting system functionality.
  • High-power LED arrays (50+ watts per square inch) lose up to 40% of their light output due to thermal stress.

Why Automotive Electronics Fail 3-5× More Often in Engine Compartments

Automotive electronics operate in demanding conditions that challenge standard PCB materials. Engine compartments create a combination of thermal and mechanical stresses:

Operating Conditions:

  • Extreme temperature swings: From -40°C winter startup to +125°C under-hood operation – a 165°C temperature range.
  • Continuous mechanical stress: Ongoing vibration and shock from road conditions and engine operation.
  • Elevated failure rates: Standard PCBs fail 3-5 times more frequently in high-temperature automotive zones, causing warranty claims and safety concerns.

How Thermal Constraints Limit Power Electronics Performance

The $27.75 billion thermal management market exists because power electronics push standard PCBs beyond their thermal limits. These systems face specific challenges that standard materials cannot address:

Design Constraints Imposed by Poor Thermal Performance:

  • Oversized heat sinks required: Often larger than the electronics themselves, adding weight and cost.
  • Complex active cooling systems: Fans and liquid cooling add failure points and maintenance requirements.
  • Reduced power density: Systems operate at lower power levels to prevent thermal damage, limiting performance capabilities.

The Result: Standard PCBs require engineers to balance performance against reliability – a trade-off that increases costs and constrains innovation.

What is an Aluminum Core PCB?

An aluminum core PCB is a specialized metal core printed circuit board featuring an aluminum substrate replacing traditional FR4 fiberglass. This aluminum core PCB material construction provides high thermal conductivity ranging from 1.0 to 8.0 W/m·K, up to 26 times better than standard materials.

Three-Layer Construction

Layer Structure:

  1. Copper Circuit Layer: Standard electrical connections and component mounting
  2. Thermally Conductive Dielectric: Electrical isolation with heat transfer capability
  3. Aluminum Base Substrate: Heat spreading and structural support

The dielectric layer serves as the critical interface, enabling efficient heat transfer from copper circuits to the aluminum base PCB while preventing electrical shorts.

Comparison with Standard FR4 PCBs

Feature Standard FR4 PCB Aluminum Core PCB Improvement
Thermal Conductivity 0.3 W/m·K 1.0-8.0 W/m·K 3-26× better
Component Temperature +80°C above ambient +25°C above ambient 55°C reduction
LED Lifespan 25,000 hours 100,000+ hours 4× longer
Power Density Limited 2-3× higher Major increase
EMI Shielding Standard 10-20 dB better Enhanced
Mechanical Strength Standard 3-5× stronger Enhanced durability
Initial Cost Lower Higher initial cost Better long-term ROI

What Are the Critical Advantages of Aluminum PCBs?

Superior Thermal Management Performance

Aluminum core PCBs deliver quantifiable thermal improvements:

Temperature Control:

  • Component temperatures: 30-60°C lower than FR4
  • Heat dissipation: 10W component stays <40°C above ambient vs. 80°C on FR4
  • LED applications: Operational life extends from 25,000 to 100,000+ hours

Enhanced Power Density and Current Handling

Improved heat spreading enables significant performance improvements:

Power Capabilities:

  • Power density: 2-3× higher than traditional materials
  • Current handling: Significantly increased capacity
  • Cooling elimination: No external heat sinks required in many applications

Improved System Reliability and Compact Design

Effective thermal management provides multiple system benefits:

Reliability Benefits:

  • Extended component lifespan through lower operating temperatures
  • Reduced system complexity by eliminating cooling components
  • 50% smaller designs are possible without bulky heat sinks

Better Electromagnetic Shielding

The aluminum ground plane provides enhanced EMI protection:

EMI Performance:

  • Radiated emissions: 10-20 dB reduction vs. standard PCBs
  • Regulatory compliance: Easier EMI/EMC certification
  • Signal integrity: Stable performance in high-frequency applications

Which Industries Need Aluminum PCBs Most?

Industry Primary Applications Key Benefits Typical Requirements
Automotive LED lighting, power management, motor control High current handling, thermal stability 2-5 W/m·K
LED Lighting High-power arrays, automotive systems, industrial Extended lifespan, color stability 1-3 W/m·K
Telecommunications 5G infrastructure, base stations, RF amplifiers Signal integrity, frequency stability 3-5 W/m·K
Power Electronics Inverters, converters, motor drives Maximum power density, heat dissipation 2-5 W/m·K
Renewable Energy Solar inverters, power optimizers, grid-tie systems Long-term reliability, efficiency 2-4 W/m·K



Critical Application Examples

Automotive LED Systems: Modern LED headlights generate substantial heat in compact packages. Aluminum LED PCB enables enhanced luminous efficacy compared to traditional materials while operating reliably in engine compartments.

5G Infrastructure: High-power RF amplifiers require effective thermal management for stable operation. The aluminum base PCB board provides enhanced EMI shielding properties that help meet stringent electromagnetic compatibility requirements.

Electric Vehicle Power Systems: Battery management systems and motor controllers handling 10kW to 150kW+ require the enhanced thermal management that aluminum PCB boards provide for safe operation and extended system life.

Real-World Aluminum PCB Specifications and Use Cases

Understanding specific aluminum PCB manufacturing specifications helps designers select optimal configurations for their applications. Below are proven specifications for high-performance thermal management applications:

LED Lighting Application Example

Product Configuration: Aluminum core PCB for high-power LED lighting systems

  • Substrate material: Aluminum base with high thermal conductivity dielectric layer
  • Layer count: 4-layer construction for complex circuit routing
  • Total thickness: 3.0mm (including 2.0mm aluminum base substrate)
  • Trace specifications: 8.0 mil minimum trace width / 6.0 mil minimum spacing
  • Thermal performance: 2.0-3.0 W/m·K thermal conductivity for LED temperature control
  • Applications: Automotive headlights, industrial high-bay lighting, street lighting systems

This aluminum LED PCB configuration demonstrates how aluminum core PCB material specifications are optimized for specific thermal and electrical requirements. The 2.0mm aluminum base provides substantial heat spreading capability while the 4-layer design enables complex circuit layouts for multi-LED array control systems.

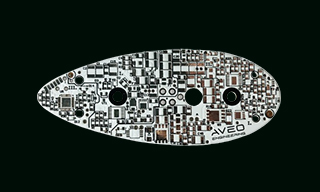

Aluminum PCB

Aluminum PCB Cost Analysis and ROI

Initial Investment vs. Long-Term Savings

The aluminum PCB market has grown significantly as industries recognize the long-term value despite higher initial costs:

Cost Factors:

  • Aluminum PCB manufacturing: 2-5× higher than standard FR4
  • Specialized processing requirements increase production costs
  • Volume scaling: Costs decrease with larger production quantities

ROI Calculation:

  • Eliminated cooling costs: Remove fans, heat sinks, active cooling
  • Extended component life: 4× longer LED lifespan reduces replacements
  • Reduced warranty claims: Lower failure rates improve satisfaction
  • System miniaturization: Material and space savings

When Aluminum PCBs Justify Higher Investment

Choose aluminum core PCBs when your application has:

Technical Requirements:

  • Heat density >1W/cm² requiring thermal management
  • Component temperature control within tight tolerances
  • Space constraints preventing external cooling
  • Extended operational life needs (10+ years)

Economic Justification:

  • Mission-critical reliability requirements
  • High warranty costs with current solutions
  • System size/weight constraints add value to integration
  • Maintenance accessibility issues favor longer-life components

When Should You Choose Aluminum PCB Over Standard PCBs?

Technical Performance Requirements

Select aluminum PCB boards when your application demands:

Thermal Management Needs:

  • Power dissipation exceeding 1W/cm² requiring active heat management
  • Tight component temperature tolerances for consistent performance
  • Compact designs where external cooling systems aren’t feasible
  • High-reliability applications requiring 10+ year operational lifespans

System Integration Benefits:

  • Space-constrained designs benefiting from integrated thermal management
  • Weight-sensitive applications where aluminum’s strength-to-weight ratio adds value
  • EMI-sensitive systems requiring enhanced electromagnetic shielding
  • Mission-critical applications where component failure costs are high

Economic Justification Framework

While aluminum PCB manufacturing requires a higher initial investment (2-5× standard PCB costs), total ownership value often justifies the premium:

Direct Cost Savings:

  • Cooling system elimination: Remove fans, heat sinks, and active cooling
  • Component longevity: 4× longer LED lifespan significantly reduces replacement costs
  • System miniaturization: Smaller designs reduce material and assembly costs
  • Maintenance reduction: Fewer cooling components mean lower service requirements

Business Impact Benefits:

  • Warranty cost reduction: Lower failure rates improve customer satisfaction and reduce claims
  • Market differentiation: Enhanced thermal performance enables competitive advantages
  • Regulatory compliance: Easier EMI/thermal certifications reduce development costs
  • Brand protection: Higher reliability protects against costly field failures

What Design Considerations Are Critical for Aluminum PCBs?

Optimizing Thermal Performance

Strategic Via Implementation: Aluminum base PCB designs require careful thermal via placement to maximize heat transfer efficiency. Arrays of smaller vias (0.2-0.3mm diameter) outperform single large vias by creating multiple heat transfer paths while maintaining electrical integrity. Position thermal vias directly beneath high-power components to establish efficient thermal coupling with the aluminum substrate.

Component Layout Optimization: High-power components should be positioned over the aluminum core’s center to leverage maximum heat spreading capability. Maintain a minimum 5mm spacing between heat-generating components to prevent thermal interference and hot spot formation. Thermal simulation tools help identify optimal placement patterns that minimize junction temperatures across the aluminum PCB board.

Material Selection Balance: The aluminum core PCB material stack-up requires balancing thermal conductivity with electrical isolation. Thinner dielectric layers (50-75 microns) maximize thermal performance but limit voltage isolation capabilities, while thicker layers (150-200 microns) provide higher breakdown voltages at the cost of thermal resistance.

Manufacturing and Assembly Requirements

Specialized Processing Needs: Aluminum PCB manufacturing demands specialized equipment and techniques. Drilling and routing operations require carbide tooling with optimized speeds and feeds to prevent burr formation and ensure clean hole edges. Proper chip evacuation prevents heat buildup that could damage the aluminum base PCB board structure.

Surface Finish Selection: Surface finishes for aluminum PCBs must withstand thermal cycling while providing reliable soldering performance. HASL (Hot Air Solder Leveling) offers durability, OSP (Organic Solderability Preservative) provides flat surfaces for fine-pitch components, and ENIG (Electroless Nickel Immersion Gold) delivers enhanced corrosion resistance for long-term reliability.

Assembly Process Adaptation: Soldering aluminum LED PCB and other aluminum-based boards requires modified reflow profiles to accommodate the high thermal mass. Higher preheating temperatures, extended soak times, and optimized cooling rates ensure reliable solder joint formation while preventing component damage from thermal stress.

How KINGBROTHER Solves Aluminum PCB Manufacturing Challenges

With 28+ years of experience, KINGBROTHER provides comprehensive aluminum base PCB solutions as a leading aluminum PCB manufacturer:

Single-sided Aluminum PCB Capabilities in KINGBROTHER

Items Conventional Non-standard
Aluminum-Based Thickness 1.0-2.0mm 0.5-3.0mm
Copper Thickness 1-2 OZ 1-4 OZ
Dielectric Thickness 75um 100-150um
Thermal Conductivity 1.0-1.5W 2.0W
Drill Hole Diameter ≥0.8mm ≥0.6mm
Depth-Controlled Routing Accuracy ±0.15mm ±0.10mm
Surface Treatment ENIG HASL, Lead-Free HASL



Multi-Layer Aluminum PCB Capabilities in KINGBROTHER

Items Conventional Non-standard
PCB Layers ≤8 ≤16
PCB Materials FR4 High TG ROGERS4000 Series
PP Types 49N/High Thermal Conductivity PP 49N/High Thermal Conductivity PP
PP Thermal Conductivity 0.2-0.3W 1.0-2.0W
Aluminum-Based Thickness 1.0-1.5mm 0.5-3.0mm
Size 350mm×450mm 400mm×550mm
Plated Through Hole (PTH) Mechanical Through-Hole Mechanically Buried Vias
Surface Treatment ENIG /



Advanced Manufacturing Capabilities

Precision Manufacturing:

  • Hole tolerances: ±0.05mm precision
  • Specialized equipment: Optimized for aluminum PCB manufacturing
  • Quick-turn services: 24-48 hour aluminum PCB prototyping available

Design Support Services:

  • Thermal modeling and finite element analysis
  • Aluminum base PCB board design optimization
  • No MOQ requirements for flexible aluminum PCB prototyping



Industry-Specific Expertise

Comprehensive Certifications: As a trusted aluminum PCB supplier, we maintain:

  • ISO 13485: Medical device quality management
  • ISO/TS 16949: Automotive quality standards
  • ISO 9001/14001: Quality and environmental management
  • UL Certification: Safety compliance verification

Advanced Testing Capabilities:

  • Thermal conductivity verification for aluminum core PCB material
  • Electrical isolation testing (-40°C to +150°C)
  • Dimensional inspection and quality assurance

Key Technology for Aluminum-Based Core Board:

  •  Aluminum-Based Concentric Circle Design
  • Vacuum Lamination Technology for Aluminum-Based Concentric Circles
  • Composite Surface Roughening Technology for Aluminum Substrates
  •  Edge Sealing Process for Aluminum-Based Sandwich Structures

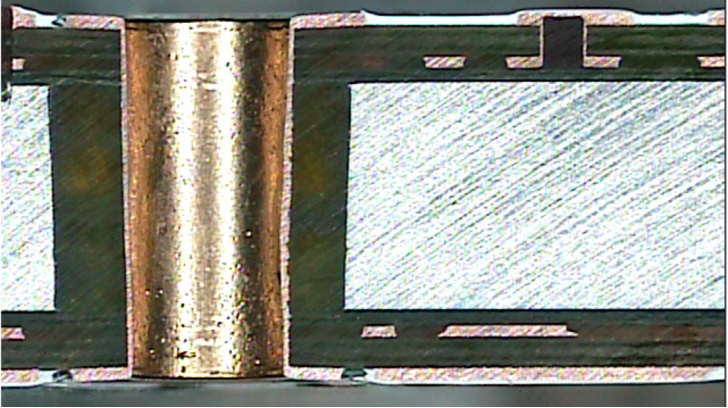

Aluminum-Based Core Board

Aluminum-Based Core PCB Capabilities in KINGBROTHER

Items Conventional Non-standard
PCB Layers ≤4 ≤12
PCB Materials FR4 High TG ROGERS4000 Series
PP Types High Thermal Conductivity High Thermal Conductivity
PP Thermal Conductivity 1.0-1.5W 2.0-3.0W
Aluminum-Based Thickness 0.5-1.5mm 0.5-3.0mm
Size 350mm×450mm 450mm×550mm
Plated Through Hole (PTH) Mechanical Through-Hole Mechanically Buried Vias
Surface Treatment ENIG HASL

Aluminum-Based Core Board

Frequently Asked Questions about Aluminium PCB

What is the difference between an aluminum PCB and a copper core PCB?

Aluminum PCBs offer 1.0-8.0 W/m·K thermal conductivity and cost-effectiveness, while copper core provides higher 401 W/m·K thermal performance at increased costs. Choose aluminum for most thermal management needs and copper core for extreme high-power applications.

How much do aluminum PCBs cost compared to standard PCBs?

Initial costs are 2-5× higher than FR4, but total ownership costs are often lower due to eliminated cooling systems, extended component life (4× longer), and reduced warranty claims.

Can aluminum PCBs be made flexible?

Yes, flexible aluminum PCB designs are available for curved surface applications, though flexibility is limited compared to standard flex circuits due to the aluminum base PCB board structure.

What thickness aluminum PCB do I need?

Thickness depends on thermal requirements: 1.0-3.0 W/m·K for LED lighting, 2-5 W/m·K for automotive electronics, and 3-8 W/m·K for high-power RF applications.

How do I calculate if I need aluminum PCBs?

Consider aluminum PCBs when heat density exceeds 1W/cm², component temperature control is critical, space prevents external cooling, or operational life requirements exceed 10 years.

What are the aluminum PCB design mistakes to avoid?

Common mistakes include inadequate thermal via placement, insufficient component spacing (<5mm), wrong dielectric thickness for voltage requirements, and ignoring thermal expansion in assembly processes.

What industries benefit most from aluminum PCB technology?

Automotive electronics, LED lighting, telecommunications infrastructure, power electronics, and renewable energy systems benefit most due to thermal management, reliability, and performance requirements.

How long do aluminum PCBs last compared to standard PCBs?

Aluminum PCBs typically last 4× longer than standard PCBs due to enhanced thermal management. LED applications achieve 100,000+ hours vs. 25,000 hours with FR4.

Get Started with Your Aluminum PCB Project

Aluminum PCBs represent an advanced thermal management solution for modern applications, delivering enhanced heat dissipation, increased power density, and improved system reliability. From automotive LED systems to 5G infrastructure, these aluminum PCB boards enable high-performance applications not achievable with traditional materials.

KINGBROTHER’s 28+ years of manufacturing excellence, comprehensive certifications, and deep application expertise ensure optimal thermal performance while meeting stringent quality requirements. Our capabilities span rapid aluminum PCB prototyping to high-volume production with no MOQ requirements and 24-48 hour turnaround options.

Ready to optimize your thermal management design with professional aluminum PCB manufacturing?

Contact our technical experts today to discuss your aluminum base PCB board requirements and discover how KINGBROTHER’s aluminum PCB capabilities can accelerate your product development while ensuring long-term reliability and performance.

Request A Quote
Connect with our expert now
Request A Quote
