10 Practical PCB Design Tips to Address EMI/EMC Challenges

Key Takeaways

1. Grounding System: Implementing a low inductance grounding system is essential for minimizing EMI and improving EMC by providing low-impedance return paths for currents.
2. Component Placement: To contain noise and reduce interference, group components by their electrical characteristics (e.g., analog, digital, power).
3. Layer Arrangement: Optimize the PCB layer structure, with grounding layers placed beneath signal layers for better shielding and reduced noise.
4. Decoupling Capacitors: Use decoupling capacitors close to IC power pins to filter noise and stabilize the power supply.
5. Crosstalk Prevention: Ensure sufficient spacing between signal traces to reduce electromagnetic coupling and maintain signal integrity.
6. Trace Bends: Avoid sharp 90° angle bends in traces; use 45° bends to minimize reflections and impedance issues.
7. Trace Separation: To reduce crosstalk and EMI, maintain trace spacing at least three times the width of the trace.
8. Via Placement: Place vias away from critical signal traces to reduce parasitic capacitance and inductance that can affect signal integrity.
9. Reference Planes: Keep signal traces adjacent to continuous ground or power planes for improved shielding and reduced loop areas.
10. Signal Isolation: Isolate analog and high-speed digital signal traces to minimize noise coupling and protect sensitive circuits.

Introduction

Have you ever experienced annoying static noise whenever you turn on your TV and radio simultaneously? That’s due to electromagnetic interference (EMI) working against your device’s electromagnetic compatibility (EMC). From home electronics to airplane navigation, EMI and EMC in PCB design are pervasive issues in our modern age.

Many industries, such as power, industrial control, medical, and aerospace, require precision to ensure efficiency and safety, and having EMI can potentially result in major problems. While it is not possible to permanently eliminate EMI, we can curate our PCBs to achieve near-perfect EMC, reducing the effects of the former.

Learn how to solve EMI/EMC problems with these 10 essential PCB design tips.

What are EMI and EMC in PCB?

What is EMI?

Electromagnetic interference is a form of electromagnetic disturbance that is transmitted through radiation/conduction from one device to another, corrupting the signal quality and causing malfunctions.

What is EMC?

Electromagnetic compatibility is the broader concept that encompasses both electromagnetic compatibility and electromagnetic susceptibility (EMS). It refers to a device’s ability to function properly in its electromagnetic environment without causing or being susceptible to interference.

While EMI refers to the electromagnetic disturbances or interference that a device emits, which can potentially disrupt the operation of other electronic systems, EMS describes the vulnerability of a device or system to electromagnetic interference from external sources.

What is the Difference Between EMI and EMC Testing

EMI testing focuses on curating the requirements and interference between neighboring equipment. In contrast, EMC testing ensures that an electrical system is capable of performing as intended under the defined safety measures.

Types of EMC Problems

In PCB design, EMC problems fall into three main categories:

• Conducted Interference: Noise enters through power circuits and affects other systems.
• Crosstalk Interference: Occurs when a signal in one trace interferes with an adjacent trace.
• Radiated Interference: Electromagnetic waves cause noise in power lines and internal traces.

How to Reduce EMI Issues and Optimize EMC in PCB Design?

Now that you understand what EMI and EMC in PCB design are, I’m sure you’re asking: How can I reduce EMI? Is there a way to optimize my EMC? Here are 10 PCB design tips and tricks that will help you mitigate any problems associated with this interference.

1. Implement a Low Inductance Grounding System

Maximizing the grounding area minimizes ground inductance, which is crucial for reducing electromagnetic interference and enhancing electromagnetic compatibility. Utilizing grounding planes helps provide low-impedance paths for return currents, thereby reducing radiation and interference.

2. Strategically Place Components Based on Function

Grouping components based on their electrical characteristics — such as analog, digital, and power components — will help contain the noise they generate within specific areas and, thereby, reduce interference.

Additionally, keeping signal traces within designated regions will enhance signal integrity and reduce the potential for EMI by preventing unintended coupling and interference between different signal types.

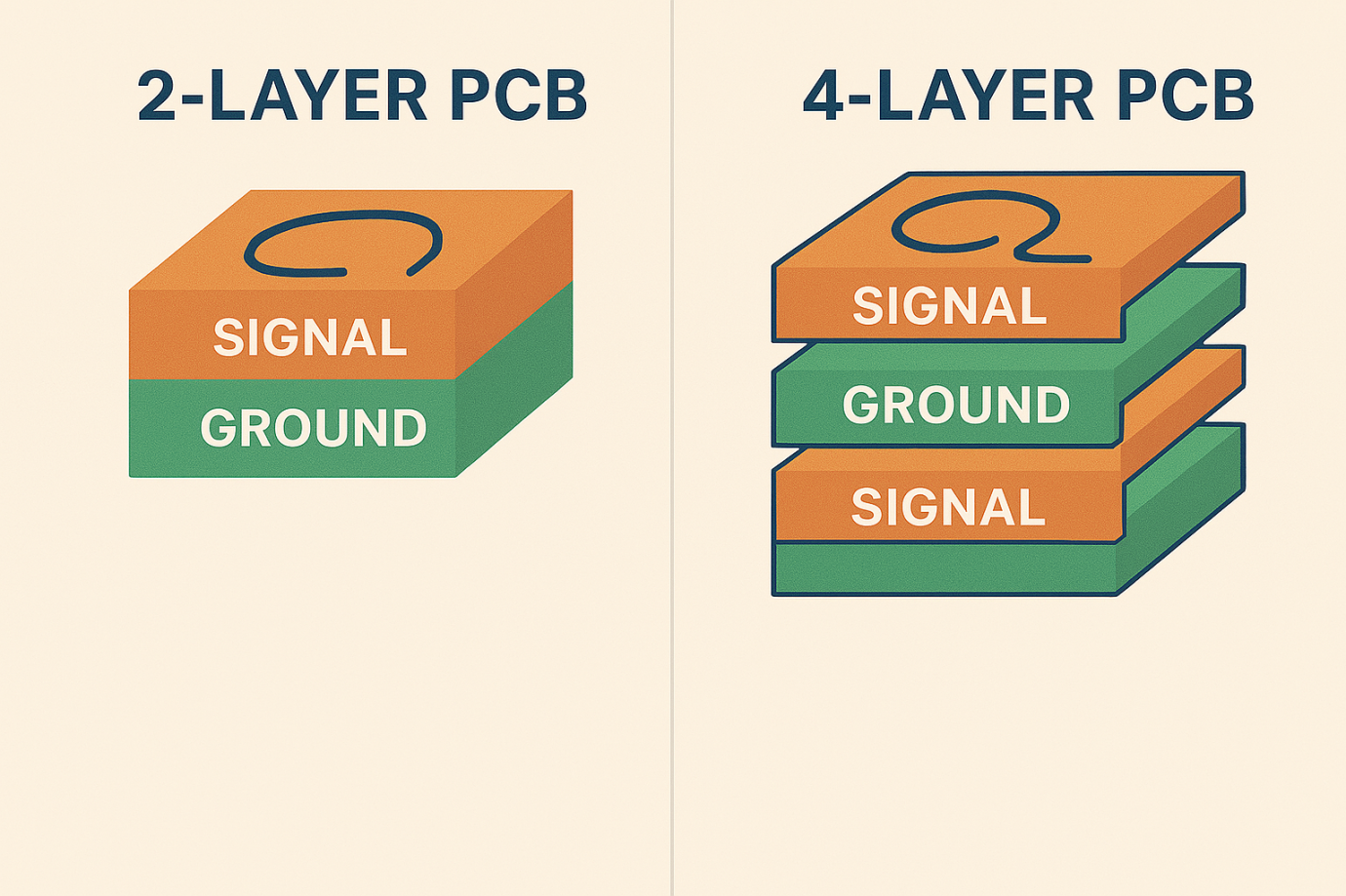

3. Optimize PCB Layer Arrangement

Optimizing the arrangement of the layers can aid in improving EMC in PCBs. How this works depends on the type of PCB you’re designing:

• 2-layer PCB: Designate the entire bottom layer as the ground plane to provide a continuous return path for signals, enhance shielding effectiveness, and minimize EMI.
• 4-layer PCB: Position the ground layer directly beneath the signal layers. This configuration creates a controlled impedance environment for the signals, reducing noise and crosstalk and improving shielding.

4. Incorporate Decoupling Capacitors

Placing decoupling capacitors as close as possible to the power supply pins of integrated circuits (ICs) helps filter out noise and stabilize the power supply voltage, thereby reducing switching noise, preserving signal integrity, and optimizing EMC.

5. Prevent Crosstalk Between Traces

Maintain adequate spacing between signal traces to reduce electromagnetic coupling, which can lead to crosstalk. Proper trace spacing ensures that signals do not interfere with each other, preserving signal integrity and boosting EMC.

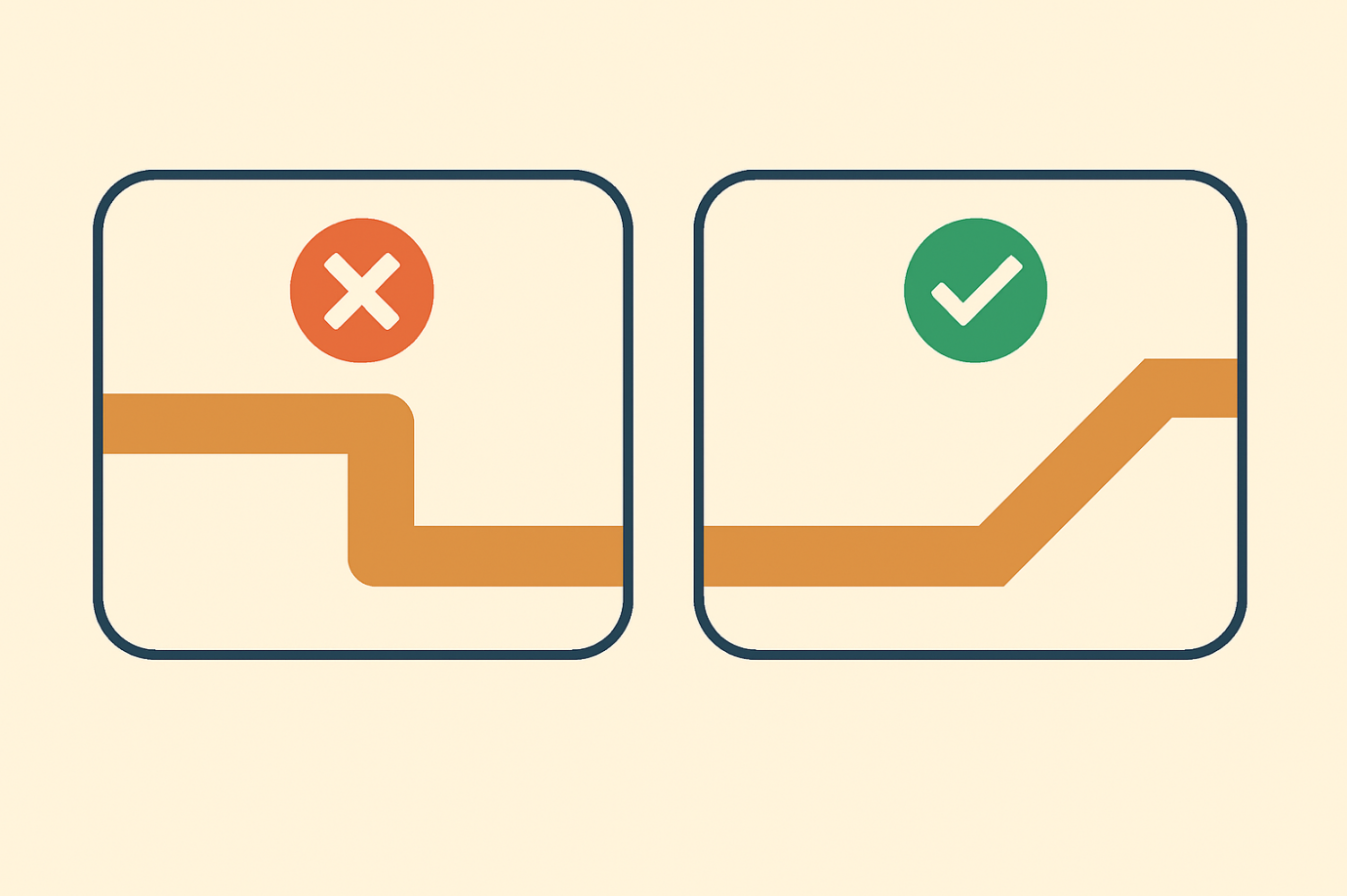

6. Avoid Sharp Angle Bends in Traces

Use 45° bends instead of 90° angles in trace routing to minimize reflections and noise coupling. Sharp angles can cause impedance discontinuities, leading to signal integrity issues and, thus, greater EMI.

7. Ensure Sufficient Trace Separation

Maintain trace spacing at least three times the trace width to reduce crosstalk and EMI. This spacing helps minimize the capacitive and inductive coupling between traces.

8. Position Vias Strategically

Keep vias away from critical signal traces to minimize parasitic capacitance and inductance, which can affect signal integrity and contribute to EMI. Strategic via placement ensures that return currents have a direct path, reducing noise and improving EMC.

9. Place Reference Planes Near Signal Traces

Keep signal traces adjacent to the continuous ground or power planes. This arrangement provides a low-impedance return path for signals, reduces loop areas, and enhances shielding, all of which contribute to improved EMC optimization.

10. Isolate Analog and High-Speed Digital Signals

To prevent interference, keep analog signal traces away from high-speed or switching digital signals. Physical separation and appropriate shielding techniques can significantly reduce the coupling of noise into sensitive analog circuits.​

Final Thoughts: Following the Best Tips for PCB Design

By integrating these crucial tips on PCB design, PCB designers can effectively reduce EMI issues and improve EMC optimization, leading to enhanced performance, improved signal integrity, and compliance with regulatory standards. Early consideration of EMI/EMC in the PCB design phase is vital for developing reliable and efficient electronic systems.
