High-Density Interconnect (HDI) PCB: Advanced Manufacturing, Benefits & Applications

Key Takeaways

1. HDI PCBs achieve higher wiring density through micro-via technology and finer lines, with the market projected to reach $39.91 billion by 2032 at 12% CAGR.
2. KINGBROTHER offers line width down to 50μm, up to 24+ layers, laser drilling, and comprehensive quality control with real-time monitoring and electrical testing.
3. Successful HDI implementation requires maintaining microvia aspect ratios below 1:1, 75μm standard trace spacing, and proper layer stack-up planning for signal integrity.
4. HDI technology serves telecommunications (5G infrastructure), medical devices (implantables), AI/IoT systems (edge computing), and industrial control (automation equipment).
5. Emerging trends include Ultra-High-Density Interconnect (UHDI) with sub-30μm features, embedded components, and sustainable manufacturing processes for next-generation electronics.

Introduction

In today’s electronics landscape, the drive toward smaller, lighter, and more powerful devices continues to accelerate. At the heart of this evolution lies High-Density Interconnect (HDI) PCB technology, a sophisticated approach to printed circuit board design that enables unprecedented levels of miniaturization and performance. HDI PCBs have become essential components in a wide range of applications, including smartphones, wearables, advanced medical devices, and telecommunications infrastructure.

This article will cover everything you need to know about HDI technology, its advantages, and its role in modern electronics.

What is HDI PCB Technology?

A High-Density Interconnect PCB, as defined by the IPC-2226, is a printed circuit board with a higher wiring density per unit area than conventional boards. This is achieved through using micro-via and buried hole technology to produce finer lines and spaces, as well as higher connection pad density.

Key characteristics that distinguish HDI PCBs

• High I/O density: Supporting more connections in a smaller area
• Layer count efficiency: Achieving more functionality with fewer layers
• Enhanced signal integrity: Shorter signal paths leading to improved electrical performance

HDI PCB Structural Design at KINGBROTHER

KINGBROTHER’s approach to HDI PCB structural design emphasizes optimal performance through advanced layer stack-up configurations and via technologies. Our engineering team specializes in creating HDI structures that strike a balance between electrical performance and manufacturing reliability.

Advanced Layer Stack-up Design

• Sequential build-up processes for complex multi-layer designs
• Optimized dielectric selection for signal integrity requirements
• Controlled impedance design throughout all HDI layers
• Strategic placement of power and ground planes for enhanced performance

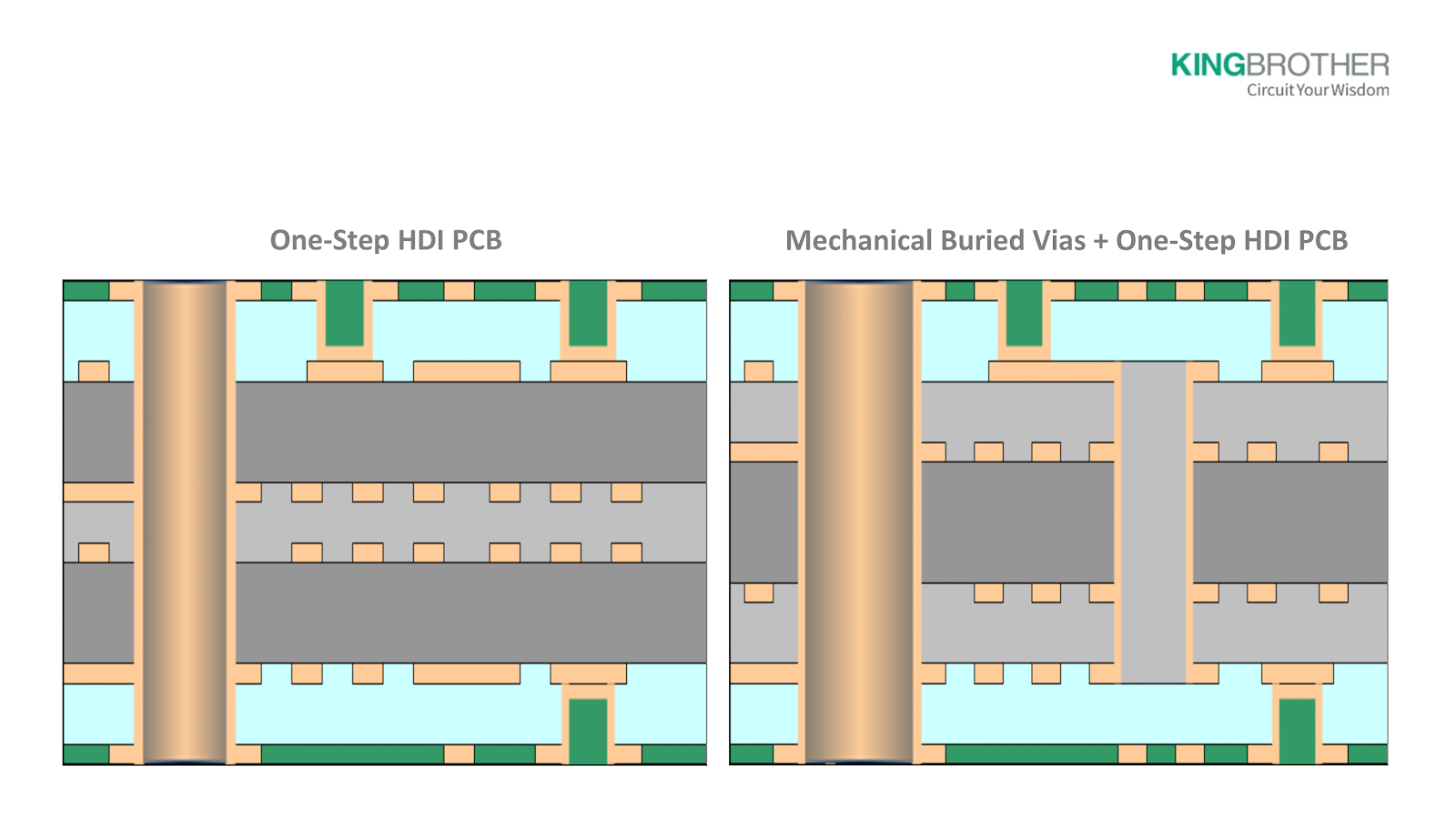

Via Structure Optimization

• Laser-drilled microvias with diameters down to 75μm

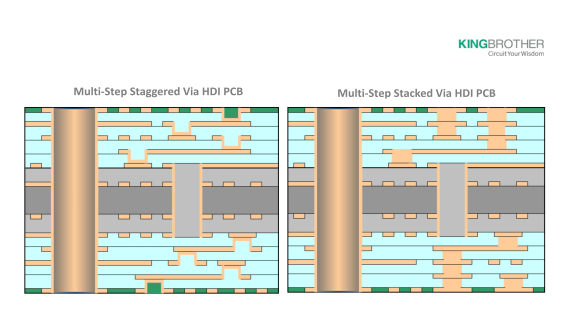

• Stacked and staggered microvia configurations
• Filled via technology for improved reliability
• Buried and blind via integration for maximum routing density

Material Integration Expertise

• High-performance laminate selection for specific applications
• Thermal management through strategic copper distribution
• Low-loss materials for high-frequency applications
• RoHS-compliant materials for environmental compliance

HDI PCB Capabilities at KINGBROTHER

KINGBROTHER’s comprehensive HDI PCB manufacturing capabilities support the most demanding applications across multiple industries. Our advanced facility combines cutting-edge equipment with specialized expertise to deliver reliable, high-performance HDI solutions.

Advanced Process Capabilities

• CO₂ and UV laser drilling for precision microvia formation
• Direct imaging (DI) technology for fine-line patterning
• Sequential lamination with precise registration control
• Advanced plating processes for reliable interconnections
• Automated optical and X-ray inspection systems

Quality Control Systems

• Real-time process monitoring throughout manufacturing
• Comprehensive electrical testing, including impedance verification
• Cross-sectional analysis for internal structure validation
• Environmental stress testing for reliability confirmation
• Full traceability documentation for regulated industries

Design Support Services

• Design for manufacturability (DFM) reviews
• Stack-up optimization consultations
• Signal integrity modeling support
• Material selection guidance
• Prototype to production scaling assistance

The Growing Importance of HDI PCB in Modern Electronics

The high circuit density and small structures used in HDI boards enable tiny form factors for devices like mobile phones and digital cameras, making the process of controlling engines and other complex systems more efficient. As a result, HDI technology has become a crucial component of modern electronics.

Through its modular design, the product is miniaturized and integrated, thereby shortening the signal transmission distance and effectively reducing distortion problems caused by signal impedance, delay, and interference.

The critical role that HDI PCB technology now plays across numerous high-tech industries is reflected in market growth rates. Maximize Market Research’s analysis predicts that the HDI market will experience a compound annual growth rate (CAGR) of 12% from 2025 to 2032, reaching nearly USD 39.91 billion by the end of the forecast period.

Key sectors driving HDI PCB demand include:

• Telecommunications: HDI PCB telecommunications applications require high-frequency performance and signal integrity for 5G infrastructure and next-generation communication devices.
• Medical Electronics: HDI PCBs for medical applications enable the development of smaller, implantable devices, portable diagnostic equipment, and wearable health monitors
• Automotive: Advanced driver assistance systems and infotainment units benefit from HDI’s reliability and performance.
• AI and IoT: HDI PCBs for AI and IoT applications provide the processing power and connectivity necessary for edge computing devices.
• Industrial control: Automation systems and IoT sensors require compact, reliable PCBs that can withstand harsh manufacturing environments.
• Optoelectronics: LED displays, optical sensors, and fiber optic equipment demand precise signal routing in miniaturized form factors.

The adoption of HDI technology has accelerated as manufacturers recognize that conventional PCB approaches can no longer meet the density and performance requirements of cutting-edge electronic products. As component sizes continue to shrink and pin counts increase, HDI has become the standard solution for addressing these challenges while maintaining manufacturability and reliability.

Now that you understand what an HDI PCB is and its growing importance in today’s advanced electronics, here are the steps in its production.

HDI PCB Fabrication Technology Explained

The manufacturing of HDI PCBs involves several specialized processes that differentiate it from standard PCB production. Understanding these processes helps designers appreciate the complexity and capabilities of HDI technology.

Laser Drilling Technology

Main technical performance:

After black oxidation, copper thickness 3-5um, minimum processing aperture 40um, conventional copper thickness 6-8um, processing aperture 510-175um

Plasma Glue Removal Technology

Main technical performance:

Processing size: 1050*650mm, processing board thickness: 0.15-6.0mm, aperture ratio: 15:1, glue removal uniformity: ≥80%

Vacuum Resin Hole Filling and Leveling Technology

Main technical performance:

Hole filling concavity: ≤25um, positioning accuracy: ±0.02mm

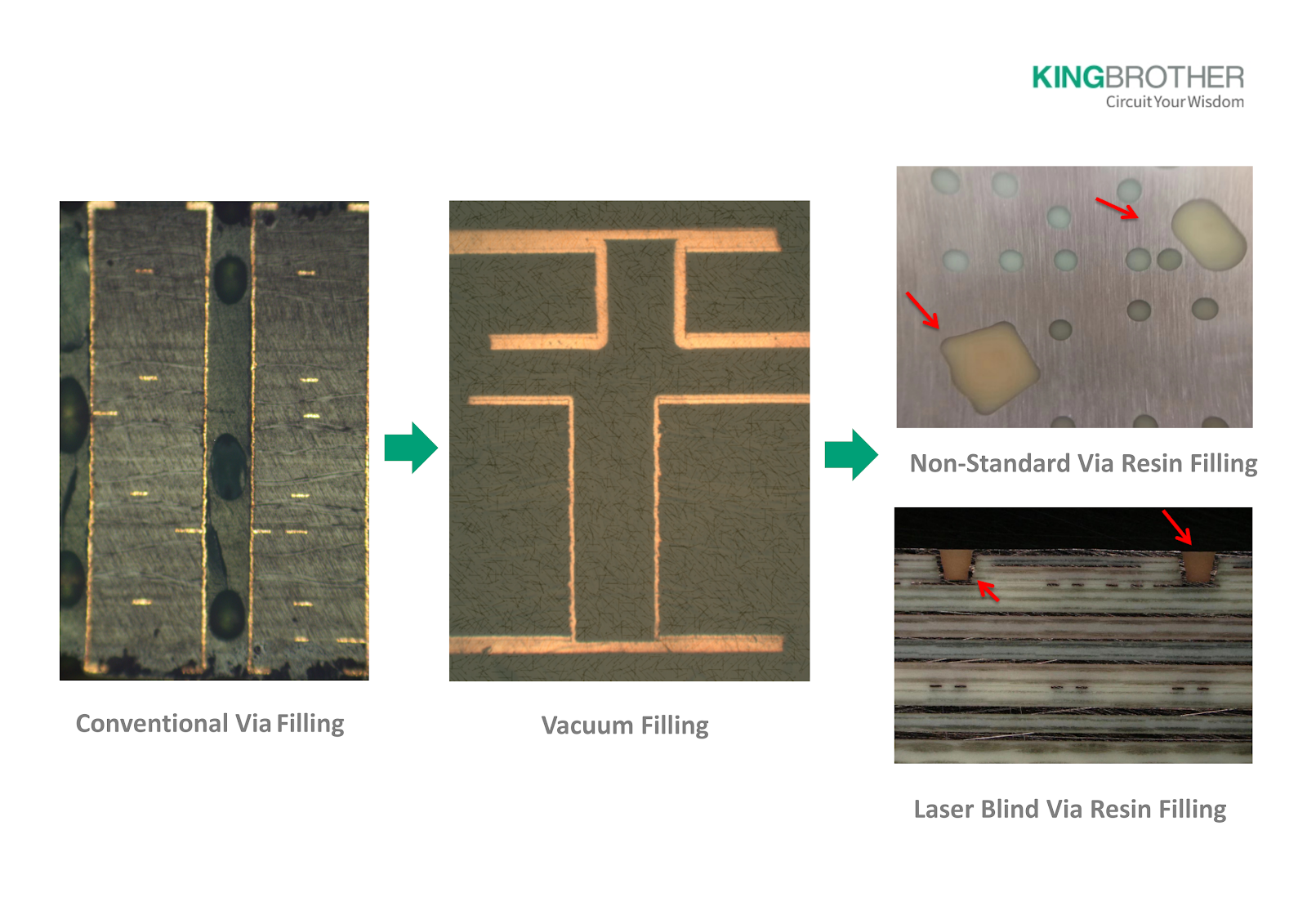

(The Effect of Vacuum Resin Hole Plugging and Filling Technology)

Fine Line Etching Technology

(1) Main exposure technical performance:

Line resolution capability: 30/30um, inter-layer alignment accuracy: 20um, positioning accuracy:±12um

(2) Main etching technical performance: Processing board thickness: 0.1-3.0 mm, equipment advantage: vacuum etching + two-fluid, etching capability: 2.0/2.0 mil

Buried Hole + Micro Blind Hole Plating Capability

Main technical performance:
Quantity: 2 panel wiring + 1 hole filling line, processing board thickness: 0.2-3.2mm, plating uniformity: COV ≤6%

Buried Hole + Micro Blind Hole Pulse Plating Technology

Main technical performance:
Quantity: 1 tank, aperture ratio: ≤25:1, blind hole copper thickness: 20um

Quality Control in HDI Manufacturing

Cost-effective HDI PCB fabrication requires rigorous quality control throughout the manufacturing process:

• Automated optical inspection (AOI) between process steps
• Specialized electrical testing for blind and buried vias
• X-ray inspection to verify internal layer alignment and via integrity
• Cross-sectional analysis to confirm microvia formation quality
• Impedance testing for signal integrity verification

The complex nature of HDI PCB assembly necessitates a partnership with experienced manufacturers who possess both the specialized equipment and technical expertise required for reliable production. KINGBROTHER’s advanced facilities and quality control processes ensure consistent, high-quality HDI PCBs even for the most demanding applications.

HDI PCB Troubleshooting and Common Challenges

Working with HDI technology introduces specific challenges that require careful management:

Technical Challenges in HDI Design

• Signal integrity at high speeds: Managing impedance control, crosstalk, and signal loss
• Power integrity: Ensuring stable voltage delivery with minimal noise
• Thermal management: Addressing heat concentration in ultra-dense designs
• Component placement constraints: Balancing density with assembly requirements
• Testing access limitations: Ensuring testability with minimal test points

Common HDI PCB Manufacturing Issues

• Registration accuracy: Maintaining precise alignment during sequential lamination
• Microvia reliability: Ensuring robust connections, particularly with stacked microvias
• Copper distribution: Balancing copper density to prevent warping
• Material stress: Managing z-axis expansion during thermal cycling
• Aspect ratio limitations: Working within the constraints of current drilling technology

Solutions for HDI Design Challenges

• Comprehensive signal integrity simulation during design
• Power integrity modeling to validate power delivery networks
• Thermal simulation to identify potential hotspots
• Design rule checks (DRC) tailored to HDI manufacturing constraints
• Early design reviews with manufacturing partners

Design Review and Validation Approaches

KINGBROTHER’s approach to HDI design validation includes:

• Manufacturing readiness reviews before production
• Design for manufacturability (DFM) analysis
• Design for testing (DFT) recommendations
• Stack-up verification and optimization
• Material selection guidance based on application requirements

Early involvement of manufacturing expertise in the design process remains the most effective strategy for avoiding costly HDI PCB issues and ensuring successful outcomes.

HDI PCB Design Guidelines and Best Practices

Successful implementation of HDI technology requires adherence to specific design guidelines that differ significantly from traditional PCB approaches. Using HDI in PCB design effectively demands attention to the following critical factors:

Microvia Formation and Aspect Ratio

• Maintain microvia aspect ratios (depth-to-diameter) below 1:1 for optimal reliability
• Consider via diameter limitations based on layer thickness (typically 4:1 minimum)
• Plan staggered via designs where deep connections are required

Trace Width and Spacing Considerations

• Design with manufacturability in mind: 75μm (3mil) trace/space is standard for HDI, but leading HDI PCB manufacturers can achieve down to 50μm (2mil)
• Maintain consistent trace widths for controlled impedance
• Use wider traces for power distribution to minimize voltage drop

Layer Stack-up Planning

• Work closely with your HDI PCB manufacturer to design optimal stack-ups
• Consider signal integrity requirements when determining layer count and arrangement
• Incorporate ground planes adjacent to signal layers for improved signal integrity
• Implement a proper return path design to minimize crosstalk and EMI

High-speed HDI PCB design guidelines

For high-speed applications, additional considerations include:

• Maintain impedance control throughout the design
• Minimize differential pair skew
• Incorporate proper reference planes
• Consider microvia stub effects on signal integrity
• Use the HDI structure to reduce layer transitions for critical signals

Design for Manufacturability (DFM)

• Include appropriate clearance around vias and pads
• Design with material properties and thermal expansion in mind
• Consider testing requirements and include test points where necessary
• Balance design density with manufacturing yield considerations

Following these guidelines helps ensure that HDI designs can be manufactured reliably, while delivering the electrical performance advantages that make HDI technology valuable in the first place. Collaborating with an experienced HDI PCB manufacturer, such as KINGBROTHER, during the design phase can significantly improve outcomes and help avoid costly revisions.

HDI PCB Reliability and Testing

Ensuring the reliability of HDI PCBs requires specialized testing approaches tailored to their unique construction:

Critical Reliability Factors

• Microvia integrity: Proper formation, plating, and adhesion
• Layer-to-layer registration: Precise alignment between sequential builds
• Material compatibility: Proper selection of materials that work together through multiple lamination cycles
• Thermal cycling performance: Ability to withstand repeated temperature changes without failure
• Via-in-pad construction: Reliable formation of filled and plated-over vias

HDI-Specific Testing Methodologies

• Automated Optical Inspection (AOI): High-resolution imaging to detect minute defects
• Automated X-Ray Inspection (AXI): Non-destructive evaluation of internal structures
• Cross-sectional analysis: Physical examination of microvia formation quality
• Interconnect Stress Testing (IST): Accelerated thermal cycling to verify reliability
• Highly Accelerated Thermal Shock (HATS): Extreme temperature cycling to identify potential failures
• Time Domain Reflectometry (TDR): Verification of impedance control and signal integrity

KINGBROTHER’s Quality Assurance Process

KINGBROTHER implements a comprehensive quality assurance protocol for HDI PCBs:

• Material verification and incoming inspection
• Process monitoring at critical manufacturing steps
• In-process testing between sequential lamination cycles
• Final electrical and visual inspection
• Documentation and traceability throughout the manufacturing process

Relevant Industry Standards

HDI PCB manufacturing adheres to several industry standards:

• IPC-6012 Class 2/3 for high-reliability electronics
• IPC-6013 for flexible circuit requirements
• IPC-6016 for HDI-specific requirements
• IPC-A-610 Class 2/3 for acceptance criteria
• Industry-specific standards such as IATF 16949 for automotive applications

Rigorous testing and adherence to these standards ensure that HDI PCBs perform reliably even in the most demanding applications, making quality control a critical aspect of successful HDI implementation.

Industry-Specific HDI PCB Applications

Here are the ways that HDI technology is utilized in different industries and sectors:

HDI PCBs in Medical Devices

HDI PCB manufacturing for medical devices addresses the unique challenges of this highly regulated sector:

• Implantable Devices: Ultra-reliable HDI designs for pacemakers, neurostimulators, and monitoring implants, where size, power efficiency, and biocompatibility are paramount.
• Diagnostic Equipment: High-performance HDI PCBs for imaging systems, patient monitors, and laboratory instruments requiring signal integrity at high frequencies.
• Wearable Medical Technology: Flexible and rigid-flex HDI solutions for continuous monitoring devices where comfort and reliability are essential.

KINGBROTHER’s experience in medical HDI PCB manufacturing includes:

• ISO 13485 certified processes
• Complete traceability for regulatory compliance
• Specialized material selection for biocompatibility
• Rigorous testing protocols for mission-critical applications

Medical applications demand the highest levels of reliability and precision, making a partnership with an experienced HDI PCB manufacturer essential for successful product development.

HDI PCBs in Telecommunications and 5G

HDI PCB telecommunications applications leverage several key advantages of this technology:

• Base Station Equipment: Multi-layer HDI designs handling high-frequency signals with minimal loss.
• Network Infrastructure: High-speed, high-density interconnects for data processing equipment.
• Antenna Systems: HDI techniques enabling compact, high-performance antenna arrays.
• Mobile Devices: Ultra-compact HDI solutions for smartphones and portable communications equipment.

Critical requirements for telecommunications HDI include:

• Low-loss material selection for frequencies exceeding 5 GHz
• Precise impedance control for signal integrity
• Thermal management for high-power RF sections
• Reliability under continuous operation conditions

KINGBROTHER’s telecommunications HDI expertise includes experience with specialized RF-optimized materials and advanced manufacturing techniques for high-frequency applications.

HDI PCBs in AI and Data Processing Systems

HDI PCB for AI and IoT applications addresses the unique challenges of these cutting-edge technologies:

• High-Performance Computing: Advanced HDI designs for AI accelerator cards and machine learning systems.
• Edge Computing Devices: Compact, thermally optimized HDI PCBs for distributed AI processing.
• Data Center Equipment: High-speed, high-reliability HDI boards for mission-critical infrastructure.
• IoT Sensors and Gateways: Size-optimized HDI solutions enabling the next generation of connected devices.

These applications require:

• Support for high-speed memory interfaces (DDR4/5, HBM)
• Advanced HDI PCB thermal management solutions for high-power processors
• Signal integrity at multi-gigabit data rates
• Reliability under continuous, high-workload conditions

KINGBROTHER’s capabilities in this sector include experience with advanced HDI structures, such as stacked microvias and any-layer HDI, required for cutting-edge AI and data processing applications.

HDI PCBs in Industrial Control Systems

Industrial applications benefit from HDI technology through:

• Automation Equipment: Compact, high-reliability HDI PCBs for robotic systems and automated manufacturing.
• Sensor Networks: Miniaturized HDI designs enabling distributed sensing in industrial environments.
• Control Panels: Integrated HDI solutions reducing cabinet size and complexity.
• Power Management Systems: HDI boards with enhanced thermal capabilities for efficient power conversion.

Industrial environments demand:

• HDI PCB reliability in harsh environments with extreme temperatures, vibration, and contaminants
• Extended product lifecycles with long-term availability
• Robust power handling capabilities
• Resistance to electromagnetic interference in noisy industrial settings

KINGBROTHER’s industrial HDI PCB solutions incorporate specialized materials and design techniques to ensure reliability under the most demanding conditions, with quality control processes tailored to industrial application requirements.

With all these applications in mind, you must consider pricing and ROI when selecting the HDI PCB that best meets your needs.

Future Trends in HDI PCB Technology

HDI PCB technology continues to evolve, with several emerging trends shaping its future:

Emerging HDI Fabrication Techniques

• Direct Imaging (DI): Higher precision patterning, eliminating photomasks
• Semi-additive processes (SAP): Enabling finer lines and spaces below 30μm
• Modified semi-additive processes (mSAP): Balance between traditional subtractive and full SAP approaches
• Advanced materials: New laminates with improved electrical and thermal properties
• Automated optical shaping (AOS): Laser-based repair of minor manufacturing defects

Ultra-High-Density Interconnect (UHDI)

The next generation of HDI technology, UHDI, pushes boundaries with:

• Line width/spacing below 30μm
• Microvia diameters below 50μm
• Layer-to-layer spacing below 40μm
• Advanced via structures, including filled stacked microvias
• Integration with advanced packaging techniques like embedded die technology

Integration with Advanced Packaging

HDI technology is increasingly merging with advanced packaging approaches:

• Embedded components: Passive and active components integrated within PCB layers
• Substrate-like PCBs (SLPs): HDI boards with semiconductor packaging capabilities
• Antenna-in-Package (AiP): Integration of RF elements directly in HDI structures
• System-in-Package (SiP): Complete functional systems in HDI-based packages

Sustainable HDI Manufacturing

Environmental considerations are driving innovations in HDI manufacturing:

• Reduced chemical usage through more efficient processes
• Lower energy consumption manufacturing techniques
• Halogen-free and low-loss material options
• Improved recycling capabilities for complex HDI structures
• Smaller form factors reduce overall material usage

KINGBROTHER remains at the forefront of these technological advances, investing in next-generation capabilities to support our clients’ most advanced design requirements.

Final Thoughts: Harnessing HDI PCB Technology for Next-Generation Electronics

As electronic devices continue to evolve toward higher performance in increasingly smaller packages, HDI PCB technology has become a crucial enabler of innovation across various industries. The benefits — increased circuit density, improved signal integrity, enhanced thermal management, and superior reliability — provide critical advantages for competitive product development. Whether developing medical devices, telecommunications equipment, AI systems, or industrial controls, HDI PCB technology offers powerful tools to achieve ambitious design goals while optimizing both performance and manufacturing costs.

KINGBROTHER’s HDI PCB Manufacturing Expertise

KINGBROTHER, a leading HDI PCB manufacturer, brings 28 years of specialized expertise to the manufacturing of these complex boards. Our advanced production facilities and technical knowledge enable us to deliver HDI PCBs that meet the most demanding requirements for miniaturization, signal integrity, and reliability.

Contact us now for your next HDI PCB project and leverage our technical expertise, manufacturing capabilities, and commitment to quality to bring your innovative designs to life.
