Choosing the Right Embedded Motherboard for Your Applications

Key Takeaways

• Embedded motherboards are specialized computing platforms designed for specific applications, offering high integration, reliability, and customization for industrial environments.
• Processor selection depends on application needs: ARM Cortex-A (1-5W) for IoT/low power, x86 Intel Atom (6-15W) for high-performance computing.
• Critical applications include industrial automation, medical devices, telecommunications, automotive systems, and IoT edge computing with strict environmental requirements.
• Key advantages include compact integration, power efficiency, 10+ year reliability, and extended lifecycle support (5-10+ years vs 1-3 years for traditional motherboards).
• KINGBROTHER’s expertise includes 28+ years of experience, HDI/rigid-flex capabilities, medical device compliance (ISO 13485), and no MOQ requirements for rapid prototyping.

Introduction

The global embedded systems market is experiencing unprecedented growth, with projections indicating a compound annual growth rate (CAGR) of 7.6% from 2024 to 2030. This explosive growth is driven by increasing IoT adoption, industrial automation expansion, and rising edge computing demand. As applications become more sophisticated and diverse, selecting the right embedded motherboard has become increasingly complex, requiring careful consideration of performance, power consumption, environmental factors, and long-term support.

This comprehensive guide provides you with a proven selection framework to navigate the complex landscape of embedded motherboard choices. Whether you’re developing industrial control systems, medical devices, telecommunications infrastructure, or AI-powered IoT solutions, understanding these critical factors will ensure your project’s success from prototype to production.

What is an Embedded Motherboard?

An embedded motherboard is a specialized computing platform designed specifically for embedded systems, representing a fundamental departure from general-purpose computing solutions. Unlike desktop or laptop motherboards, embedded motherboards are engineered for specific applications, environments, and functions, offering high integration, reliability, and customization capabilities.

How Does an Embedded Motherboard Work?

A motherboard with embedded PC components operates similarly to a standard industrial PC, but in a miniaturized, optimized format:

1. Input Processing: The embedded motherboard receives input via connectivity interfaces (USB, Ethernet, serial ports).
2. CPU Deliberation: The processor analyzes the input and determines the required response.
3. Memory Access: If recent data exists, the CPU retrieves it from RAM for fast processing.
4. Storage Retrieval: For new requests, the CPU accesses permanent storage components, requiring additional processing time.
5. Action Completion: Once the CPU receives the necessary data, it executes the required action.

This streamlined process enables embedded motherboards to deliver reliable, real-time responses in demanding industrial environments.

Key Applications of Embedded Motherboards

Industrial Automation and Control Systems

Industrial automation represents one of the largest markets for embedded industrial motherboards:

• PLC and SCADA Systems: Require real-time processing capabilities, multiple industrial communication protocols, and high reliability for continuous operation.
• Motor Control and Machine Vision: Demand high-performance processors capable of real-time image processing and precise motor control algorithms.
• HMI Systems: Need integrated display controllers, touch interface support, and robust environmental specifications.

IoT and Edge Computing Applications

The IoT revolution has created massive demand for embedded computing platforms:

• Smart Sensor Hubs and Gateways: Require low power consumption, wireless connectivity, and protocol translation capabilities.
• Data Acquisition Devices: Need precise analog interfaces, high-speed data logging, and reliable connectivity.
• Edge Computing Nodes: Demand AI acceleration capabilities, local processing power, and secure communication protocols.

Medical Device Applications

Medical applications impose stringent requirements on embedded motherboards:

• Patient Monitoring Systems: Require ultra-reliable operation, precise analog interfaces, and compliance with medical safety standards.
• Medical Imaging Equipment: Demand high-performance processors, large memory capacity, and specialized image processing capabilities.
• Regulatory Compliance: All medical devices must comply with FDA regulations and ISO 13485 standards, requiring extensive documentation and traceability.

Transportation and Automotive Systems

Transportation applications require robust, automotive-qualified embedded solutions:

• In-Vehicle Infotainment: Needs multimedia processing capabilities, CAN bus connectivity, and automotive environmental specifications.
• Fleet Management Solutions: Require GPS connectivity, cellular communication, and rugged environmental specifications.
• Autonomous Vehicle Components: Demand high-performance AI processing, multiple sensor interfaces, and fail-safe operation modes.

Telecommunications Infrastructure

5G and edge computing drive demand for high-performance embedded solutions:

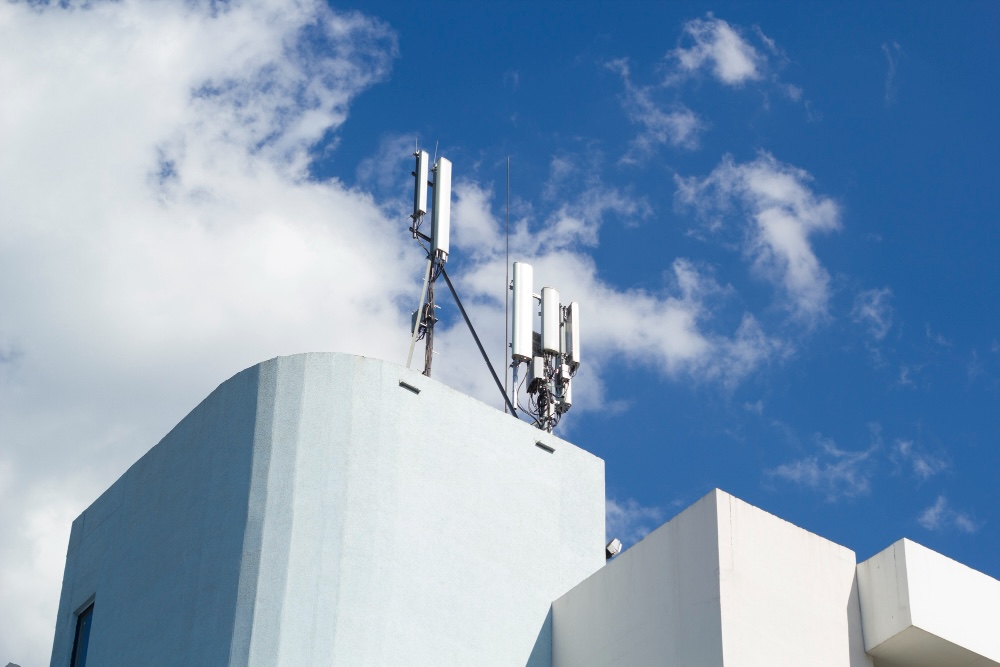

• 5G Base Stations: Require high-frequency processing capabilities, low-latency operation, and extensive I/O interfaces.
• Network Equipment: Need packet processing acceleration, multiple Ethernet interfaces, and carrier-grade reliability.
• Edge Computing for Telecom: Demand AI acceleration, high-bandwidth connectivity, and ultra-low latency processing.

Performance Specifications and Technical Requirements

These demanding applications require careful consideration of technical specifications to ensure optimal performance and reliability.

Processor Architecture Selection (ARM vs x86 vs RISC-V)

ARM Cortex-A Series (1-5W TDP)

• Best for IoT, battery-powered devices, and edge computing requiring energy efficiency
• Excellent for applications prioritizing power efficiency over raw computing power

x86 Intel Atom/Celeron (6-15W TDP)

• Ideal for high-performance applications needing x86 software compatibility
• Perfect for industrial automation and medical imaging requiring substantial processing power

RISC-V

• Emerging open-source option for cost-sensitive and highly customized applications
• Currently limited ecosystem support but growing rapidly

Memory and Storage Specifications

Memory Options:

• DDR3L: Cost-effective for basic applications (1-8GB typical)
• DDR4: Balanced performance and power consumption (2-32GB typical)
• LPDDR4/LPDDR5: Ultra-low power for battery-operated devices (1-16GB typical)

Storage Interfaces:

• eMMC: Highly integrated and reliable (8-256GB typical), soldered directly to the board
• SATA: Traditional interface supporting 2.5″ SSDs and HDDs
• M.2: Modern interface supporting both NVMe SSDs and wireless modules

Interface and Connectivity Options

Industrial Interfaces:

• RS-232/422/485: Serial communication for industrial equipment
• CAN Bus: Automotive and industrial control applications
• GPIO: General-purpose digital I/O for sensors and actuators

Standard Connectivity:

• Gigabit Ethernet: Network connectivity with TSN support for industrial applications
• USB 2.0/3.x: Peripheral connectivity and data transfer
• HDMI/DisplayPort: Video output for HMI applications

Expansion Options:

• Mini PCIe: Wireless modules (WiFi, Bluetooth, cellular)
• M.2: NVMe storage or additional wireless connectivity

Environmental and Power Requirements

Understanding these critical factors ensures your embedded motherboard will operate reliably in its intended environment.

Power Consumption and Thermal Management

• TDP Considerations: Fanless designs typically require processors with a TDP below 10W, while actively cooled systems can accommodate 15-25W processors
• Wide Voltage Input: Industrial applications often require 9-36V DC input with protection against voltage spikes and brownouts
• Dynamic Power Management: Modern embedded motherboards implement sophisticated power management, including dynamic frequency scaling and selective component shutdown

Environmental Specifications

• Operating Temperature: Industrial-grade boards typically operate from -40°C to +85°C, compared to 0°C to +70°C for commercial-grade products
• Vibration and Shock Resistance: Automotive and industrial applications require compliance with IEC 60068 and ISO 16750 standards
• Protection Ratings: IP-rated enclosures may be required for dust and moisture protection in harsh environments

Core Components and Integration (CPU, Memory, I/O)

Modern embedded motherboards achieve remarkable integration by combining essential components on a single compact circuit board, which provides significant advantages over traditional computing solutions.

Component Integration Benefits

• Processors: ARM Cortex-A series, Intel Atom/Celeron, or emerging RISC-V architectures
• Memory: Integrated DDR3L/DDR4/LPDDR4 with capacities from hundreds of MB to tens of GB
• Storage Controllers: eMMC, SATA, M.2 interfaces for various storage solutions
• I/O Interfaces: Industrial protocols and standard connectivity integrated on a single board

Form Factor Varieties (COM Express, SMARC, Custom)

Standard Form Factors:

• COM Express: High-performance applications requiring extensive I/O capabilities
• SMARC: Ultra-low power applications with ARM-based processors
• Qseven: Compact designs for space-constrained applications
• Mini-ITX and 3.5″ SBC: Traditional form factors adapted for embedded use

Custom Solutions:

• Completely tailored designs based on specific device constraints and requirements

Key Advantages of Embedded Motherboards

Space and Integration Benefits

Embedded motherboards maximize functionality within minimal space constraints. A single board can integrate components that would typically require multiple separate modules, reducing system complexity and improving reliability through fewer interconnections.

Power Efficiency Advantages

Advanced power management features enable embedded motherboards to operate at significantly lower power levels than traditional solutions. This efficiency translates to reduced cooling requirements, extended battery life, and lower operational costs.

Reliability and Longevity Features

Embedded industrial motherboards are engineered for continuous operation in harsh environments. Industrial-grade components, conformal coatings, and robust design practices ensure reliable operation over extended periods, often 10+ years without maintenance.

Customization Capabilities

Manufacturers like KINGBROTHER offer extensive customization options, including interface modifications, component selection optimization, and form factor adaptations to meet specific application requirements.

Long Lifecycle Support (5-10+ years)

Unlike traditional motherboards with 1-3 year lifecycles, embedded motherboards offer extended support periods, ensuring long-term availability for industrial products requiring multi-year production runs and extended service life.

What is the Difference Between Embedded CPU vs. Traditional Motherboard?

These advantages become clear when comparing embedded motherboards directly with traditional PC motherboards:

Embedded CPU Motherboard vs. Traditional PC Motherboard

How to Choose the Right Embedded Motherboard

With these applications and advantages in mind, here’s a systematic approach to selecting the right embedded motherboard for your specific needs.

Step 1: Define Your Requirements

Performance Requirements Assessment

CPU Selection Based on Workload:

• Simple control tasks: ARM Cortex-M or low-end Cortex-A processors
• Complex computing (AI/image processing): High-end ARM Cortex-A or x86 processors
• Real-time applications: Processors with dedicated real-time cores or co-processors

Memory Sizing Guidelines:

• Basic control: 256MB-1GB RAM
• Multimedia applications: 2-4GB RAM
• AI and machine learning: 8GB+ RAM

Step 2: Evaluate Technical Specifications

Power and Thermal Considerations

• Fanless vs Active Cooling: Fanless designs are preferred for industrial environments due to reliability benefits, limiting processor selection to sub-10W TDP options.
• Battery-Powered Applications: Require ultra-low power processors with sophisticated power management and wake-up capabilities.

Interface and Connectivity Requirements

• Industrial Protocol Needs: Assess requirements for CAN bus, Modbus, EtherCAT, PROFINET, and other industrial communication protocols.
• Expansion Capabilities: Plan for future feature additions through modular expansion interfaces.

Step 3: Consider Long-term Factors

Environmental and Reliability Factors

• Operating Temperature Requirements: Determine if commercial (0°C to +70°C) or industrial (-40°C to +85°C) temperature ranges are required.
• Certification Needs: Identify required certifications such as CE, FCC, UL, and industry-specific standards.

Long-term Support and Lifecycle Planning

• Supply Chain Stability: Evaluate the manufacturer’s commitment to long-term support and component availability.
• Upgrade Path Considerations: Plan for future hardware and software upgrade requirements.

Step 4: Validate Your Choice

Budget and Total Cost of Ownership

Consider initial costs, development tools, support services, and long-term maintenance expenses. While embedded motherboards may have higher initial costs, their reliability and longevity often provide better total cost of ownership.

Common Pitfalls to Avoid:

• Selecting based solely on initial cost without considering lifecycle expenses
• Underestimating environmental requirements leads to premature failures
• Insufficient planning for component obsolescence and upgrade paths
• Inadequate evaluation of supplier long-term support capabilities

Pro Tips for Choosing an Embedded Motherboard

• Ensuring Peripheral Compatibility: Test all required peripherals, sensors, and communication modules during evaluation to verify driver support and interface compatibility with your chosen embedded motherboard.
• Planning for Long Product Lifecycles: Choose manufacturers offering 5-7 year availability commitments. Document part numbers, suppliers, and alternatives while considering future migration paths and backward compatibility needs.

Key Decision Framework Summary

When selecting the best embedded motherboard for your application, prioritize these critical factors:

• ✓ Performance Match: Align processor architecture with your application
  requirements
• ✓ Environmental Compliance: Ensure specifications meet your operating
  conditions
• ✓ Interface Requirements: Verify all necessary connectivity options are available
• ✓ Long-term Support: Choose suppliers committed to extended lifecycle support
• ✓ Total Cost Analysis: Consider complete ownership costs, not just initial price

Why Choose KINGBROTHER for Your Embedded Motherboard Needs

With over 28 years of experience in advanced PCB design and manufacturing, KINGBROTHER has developed deep expertise in embedded system solutions. Our comprehensive capabilities span from concept design to volume production, supporting customers across diverse industries with complex technical requirements.

Advanced Manufacturing Capabilities

• HDI and Rigid-Flex Expertise: Advanced manufacturing capabilities for compact, high-density embedded designs with up to 30 layers and complex mechanical requirements.
• High-Frequency Board Specialization: Expertise in materials like Rogers and Taconic for high-speed digital and RF applications is essential for modern embedded systems.
• No MOQ Requirements: Flexible manufacturing supporting prototype development through volume production without minimum order constraints.

Industry-Specific Solutions

• Medical Device Compliance: ISO 13485 certification ensures compliance with medical device quality standards, supporting regulatory approval processes.
• Industrial Control Expertise: Extensive experience with industrial automation applications, including harsh environment designs and real-time system requirements.
• Telecommunications and 5G Infrastructure: Advanced capabilities for high-frequency, high-speed designs are essential for modern telecommunications equipment.

Quality and Certification Standards

KINGBROTHER maintains comprehensive quality certifications, including ISO 9001, ISO 14001, ISO/TS 16949, and ISO 13485, ensuring consistent quality across all manufacturing processes. Our environmental testing capabilities validate designs for demanding operating conditions.

Rapid Prototyping and Quick-Turn Services

Our agile manufacturing approach enables rapid iteration during embedded system development, with quick-turn capabilities supporting fast time-to-market requirements. Design for manufacturability optimization ensures a smooth transition from prototype to production.

Leverage KINGBROTHER’s Embedded Motherboard Solutions   For Your Application-Specific Needs

Selecting the right embedded motherboard comes down to matching your specific performance, environmental, and interface requirements with the appropriate processor architecture and form factor. Modern embedded motherboards deliver unprecedented integration and reliability, enabling innovative solutions across IoT, industrial automation, medical devices, and telecommunications. Success depends on careful consideration of environmental conditions, certification needs, and long-term lifecycle planning.

Need help finding the right embedded motherboard solution?

Contact us now to get expert guidance on your embedded motherboard selection today.

Our team of specialists will work with you to identify the optimal solution that meets your performance, environmental, and lifecycle requirements while ensuring smooth progression from prototype to production.
